796683-5
Or copy the link below:
- Mfr.Part #
- 796683-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

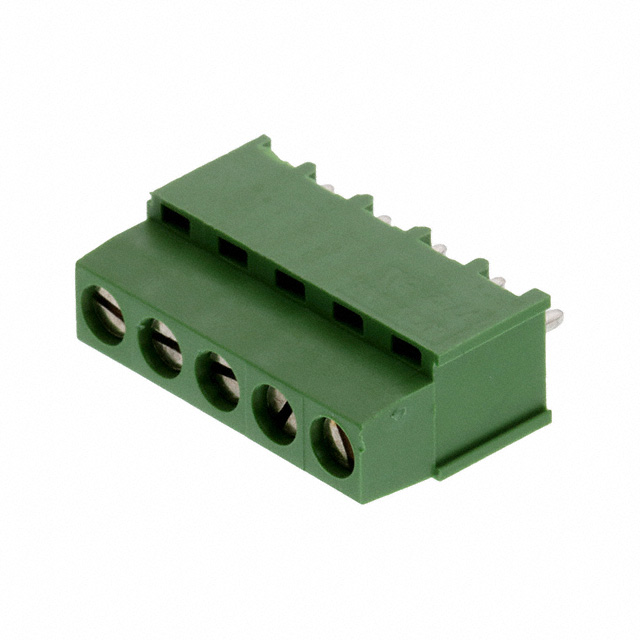

- TERM BLK 5POS SIDE ENTRY 5MM PCB
- Stock
- 1,617
- In Stock ：
- 1,617
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- ELV :
- Compliant
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Wire Gauge :
- 12-30 AWG
- Number of Rows :
- 1
- Orientation :
- Straight
- Contact Plating :
- Tin
- Screw Material - Plating :
- Brass - Nickel Plated
- Feature :
- Interlocking (Side)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Number of Ways :
- 25
- Factory Lead Time :
- 20 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Decks :
- 1
- Length :
- 25.5mm
- Wire Gauge (Max) :
- 30 AWG
- Published :
- 2005
- Max Operating Temperature :
- 105°C
- Mating Orientation :
- Horizontal with Board
- Termination :
- Solder
- Contact Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Pitch :
- 0.197 5.00mm
- Contact Material :
- Brass
- Radiation Hardening :
- No
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Contacts :
- 5
- Color :
- Green
- Max Supply Voltage (AC) :
- 300V
- Safety Approval :
- UL
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Wire Gauge (Min) :
- 12 AWG
- Length - Tail :
- 3.5mm
- Depth :
- 9mm
- Packaging :
- Bulk
- Current Rating :
- 17.5A
- Max Current Rating :
- 17.5A
- Flammability Rating :
- UL94 V-0
- Screw Thread :
- M3
- Number of Levels :
- 1
- Min Operating Temperature :
- -40°C
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Series :
- Buchanan
- Datasheets
- 796683-5
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796683-5 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.
796683-5 Features
Buchanan series
796683-5 Applications
There are a lot of TE Connectivity AMP Connectors
796683-5 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
