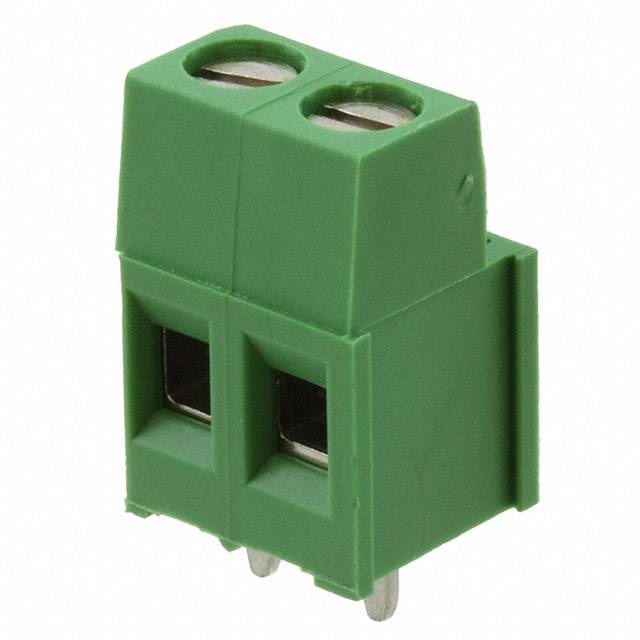

796683-2
Or copy the link below:
- Mfr.Part #
- 796683-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENTRY 5MM PCB
- Stock
- 4,752
- In Stock ：
- 4,752
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Max Voltage Rating (AC) :
- 300V
- Positions Per Level :
- 2
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Clamp Material - Plating :
- Brass - Nickel Plated
- Screw Thread :
- M3
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Positions :
- 2
- Length :
- 10mm
- Wire Gauge (Min) :
- 12 AWG
- Number of Rows :
- 1
- Published :
- 2007
- Max Current Rating :
- 17.5A
- Housing Color :
- Green
- Max Supply Voltage (AC) :
- 300V
- Contact Material - Plating :
- Brass - Tin Plated
- Termination :
- Solder
- Contact Material :
- Brass
- Max Operating Temperature :
- 105°C
- Lead Free :
- Lead Free
- Screw Material - Plating :
- Brass - Nickel Plated
- Packaging :
- Bulk
- Mount :
- Through Hole
- Orientation :
- Straight
- Radiation Hardening :
- No
- Series :
- Buchanan
- Number of Poles :
- 2
- Pitch :
- 0.197 5.00mm
- Wire/Cable Gauge :
- 30 AWG
- Length - Tail :
- 3.5mm
- Mounting Type :
- Through Hole
- Depth :
- 9mm
- Number of Levels :
- 1
- Mating Orientation :
- Horizontal with Board
- Contact Plating :
- Tin
- Current Rating :
- 17.5A
- Wire Gauge (Max) :
- 30 AWG
- Width :
- 15.2mm
- Connector Type :
- Receptacle
- Plating :
- Brass
- Voltage :
- 300V
- Color :
- Green
- Wire Gauge :
- 12-30 AWG
- Number of Contacts :
- 2
- Feature :
- Interlocking (Side)
- RoHS Status :
- RoHS Compliant
- Number of Circuits :
- 2
- Thread Size :
- M3
- Current :
- 17.5A
- Min Operating Temperature :
- -40°C
- Voltage - Rated :
- 300V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Positions Per Level :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Datasheets
- 796683-2
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796683-2 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.It consists of 2 circuits.
796683-2 Features
Buchanan series
796683-2 Applications
There are a lot of TE Connectivity AMP Connectors
796683-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
