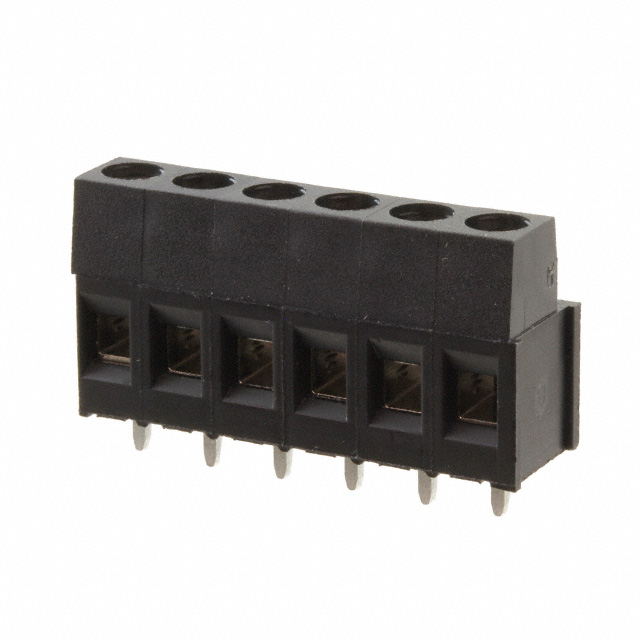

796682-6
Or copy the link below:
- Mfr.Part #
- 796682-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6POS SIDE ENTRY 5MM PCB
- Stock
- 1,256
- In Stock ：
- 1,256
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Feature :
- Interlocking (Side)
- Max Operating Temperature :
- 105°C
- Mount :
- Through Hole
- Length - Tail :
- 3.5mm
- Orientation :
- Straight
- Mounting Type :
- Through Hole
- Current Rating :
- 17.5A
- Safety Approval :
- UL
- Packaging :
- Bulk
- Series :
- Buchanan
- ECCN Code :
- EAR99
- Depth :
- 9mm
- Pitch :
- 0.197 5.00mm
- Wire Termination :
- Screw - Rising Cage Clamp
- Screw Thread :
- M3
- Voltage - Rated :
- 300V
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Plating :
- Tin
- Wire Gauge :
- 12-30 AWG
- Wire Gauge (Max) :
- 30 AWG
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Contact Material - Plating :
- Brass - Tin Plated
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- RoHS Status :
- RoHS Compliant
- Screw Material - Plating :
- Brass - Nickel Plated
- Radiation Hardening :
- No
- Length :
- 30.5mm
- Max Supply Voltage (AC) :
- 300V
- Factory Lead Time :
- 12 Weeks
- Color :
- Black
- Mating Orientation :
- Horizontal with Board
- Termination :
- Solder
- Number of Decks :
- 1
- Min Operating Temperature :
- -40°C
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Connector Type :
- Receptacle
- Wire Gauge (Min) :
- 12 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2005
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material :
- Brass
- Wire Cross Section :
- 2.5 mm2
- Number of Levels :
- 1
- Number of Ways :
- 6
- Number of Rows :
- 1
- Number of Contacts :
- 6
- Max Current Rating :
- 17.5A
- ELV :
- Compliant
- Datasheets
- 796682-6
0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796682-6 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
796682-6 Features
Buchanan series
796682-6 Applications
There are a lot of TE Connectivity AMP Connectors
796682-6 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
