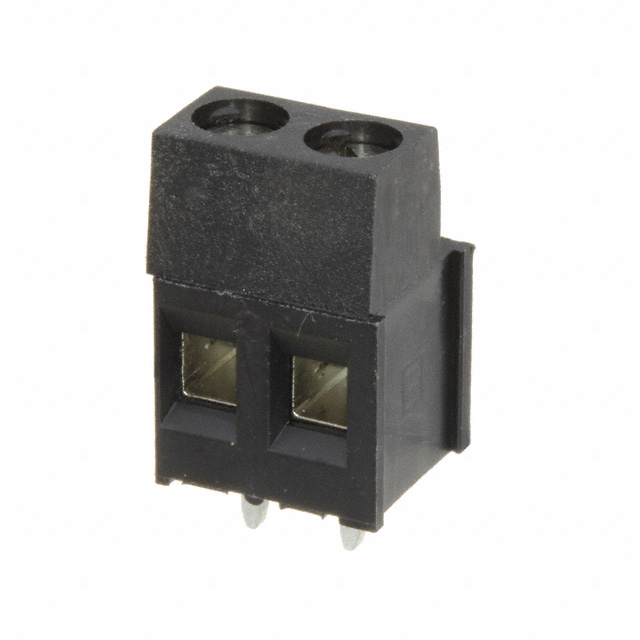

796682-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Additional Feature :

PA66, 94V-0

Base/Housing Material :

Polyamide 66

Connection Method :

Screw Clamp

Operating Temperature :

-40 to 105 °C

ECCN Code :

EAR99

Mounting :

Through Hole

HTS Code :

8536.69.40.40

Brand :

TE Connectivity

Number of Ways :

2

Housing Color :

Black

Rated Voltage :

300 V

Number of Positions :

2 Position

Brand Name :

Buchanan

Wire Size :

30 to 12, 30 AWG

Wire Gauge :

12 AWG

Body Orientation :

Straight

Contact Material :

Brass

Current Rating (Max) :

17.5/Contact(A)

Product Length (mm) :

10.5(mm)

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Product Length :

10.5 mm

Product :

Fixed Terminal Blocks

Rated Current :

17.5 A

Housing Material :

Polyamide 6/6

Number of Decks :

1

Rad Hardened :

No

Mounting Style :

Through Hole

Product Height (mm) :

15.5(mm)

Operating Temp Range :

-40C to 105C

Wire Cross Section :

2.5 mm2

Voltage Rating :

300 V

Mounting Angle :

Horizontal

Pitch :

5.0000 mm

Contact Plating :

Tin

RoHS :

Details

Reach Compliance Code :

not_compliant

Number of Rows :

1

Termination Method :

Solder

Contact Pitch (mm) :

5(mm)

Product Type :

Fixed Terminal Blocks

Fastening Method :

Screw

Mounting Type :

BOARD

Product Category :

Fixed Terminal Blocks

Current Rating :

17.5 A

Gender :

HDR

Flammability Rating :

UL 94 V-0

Product Depth (mm) :

9(mm)

Number of Contact Rows :

1

Operating Voltage (Max) :

300VAC

Termination Style :

Solder Pin

Subcategory :

Terminal Blocks

Factory Lead Time :

9 Weeks, 2 Days

Safety Approval :

UL

Number of Contacts :

2(POS)

Type :

Terminal Block
