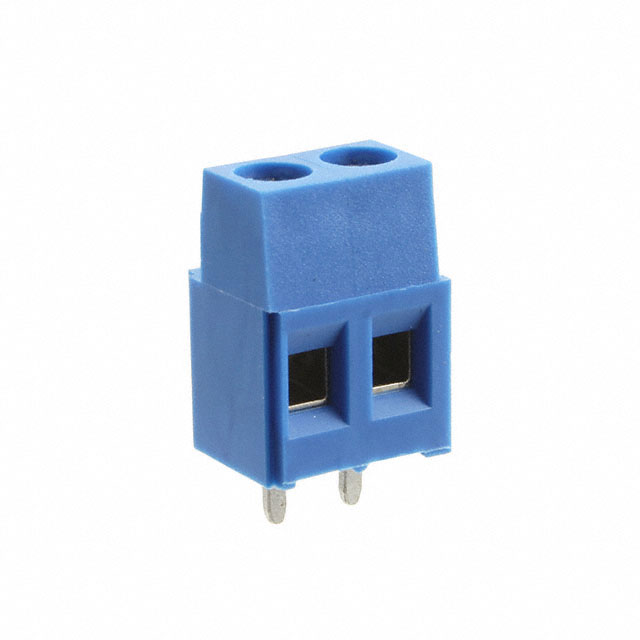

796681-2
Or copy the link below:
- Mfr.Part #
- 796681-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENTRY 5MM PCB
- Stock
- 182
- In Stock ：
- 182
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Number of Levels :
- 1
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 30 AWG
- Wire Gauge (Min) :
- 12 AWG
- Pitch :
- 0.197 5.00mm
- Connector Type :
- Receptacle
- Current Rating :
- 17.5A
- Feature :
- Interlocking (Side)
- Wire Gauge :
- 12-30 AWG
- Number of Decks :
- 1
- Mount :
- Through Hole
- Voltage - Rated :
- 300V
- Color :
- Blue
- Lead Free :
- Lead Free
- Mating Orientation :
- Horizontal with Board
- Length - Tail :
- 3.5mm
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Rows :
- 1
- Screw Material - Plating :
- Brass - Nickel Plated
- Screw Thread :
- M3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Wire Termination :
- Screw - Rising Cage Clamp
- Safety Approval :
- UL
- Contact Plating :
- Tin
- Max Current Rating :
- 17.5A
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Number of Ways :
- 22
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- ELV :
- Compliant
- Number of Contacts :
- 2
- Factory Lead Time :
- 4 Weeks
- Min Operating Temperature :
- -40°C
- Length :
- 10.5mm
- Max Supply Voltage (AC) :
- 300V
- Series :
- Buchanan
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Published :
- 2007
- Depth :
- 9mm
- Termination :
- Solder
- Contact Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.69.40.40
- Datasheets
- 796681-2
0.197 5.00mm Blue Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796681-2 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
796681-2 Features
Buchanan series
796681-2 Applications
There are a lot of TE Connectivity AMP Connectors
796681-2 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
