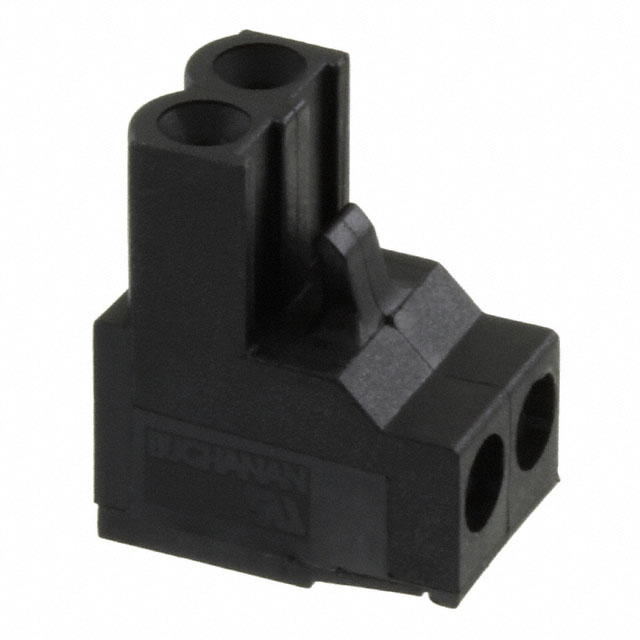

796641-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Orientation :

RIGHT ANGLE

HTS Code :

8536.69.40.40

Pitch :

0.197 5.00mm

Feature :

Retention Latches (Non-Wire Side), Side Stacking

Screw Size :

M3

Lead Free :

Lead Free

Current Rating :

15A

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Voltage - Rated AC :

300V

Flammability Rating :

UL94 V-0

Voltage - Rated :

300V

Series :

Termi-Blok, Buchanan

Mount :

Cable, Free Hanging

Number of Levels :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Color :

Black

Wire Gauge (Min) :

30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

15A

ELV :

Compliant

Radiation Hardening :

No

Connector Type :

PLUG

Wire Gauge (Max) :

30 AWG

Wire Gauge or Range - mm² :

0.05-3mm2

Current :

15A

Contact Material :

Phosphor Bronze

Number of Contacts :

2

Published :

2006

Number of Ways :

2

Number of Rows :

1

Plug Wire Entry :

180°

Voltage :

300V

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Wire Strip Length :

6-7.5mm

Operating Temperature :

-40°C~110°C

Safety Approval :

UL

Termination :

Screw

Number of Decks :

1

Contact Mating Finish :

Tin

Factory Lead Time :

13 Weeks

Wire Gauge or Range - AWG :

12-30 AWG

Insulation Height :

0.610 15.49mm

Termination Style :

Screw - Rising Cage Clamp

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Additional Feature :

PA 66, 94V-0, POLARIZED

Mounting Type :

Free Hanging (In-Line)

Type :

Plug, Female Sockets
