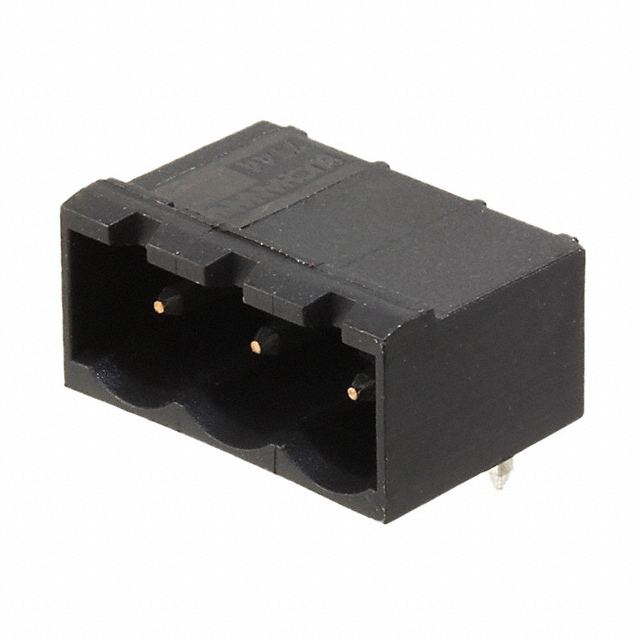

796639-3
Or copy the link below:
- Mfr.Part #
- 796639-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 5.08MM
- Stock
- 3,025
- In Stock ：
- 3,025
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Decks :
- 1
- Contact Mating Finish :
- Tin
- Safety Approval :
- UL
- Max Voltage Rating (AC) :
- 300V
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Operating Temperature :
- -40°C~110°C
- Orientation :
- RIGHT ANGLE
- Length :
- 17.06mm
- RoHS Status :
- RoHS Compliant
- Voltage :
- 300V
- Insulation Height :
- 0.329 8.36mm
- Mount :
- Through Hole
- Current :
- 15A
- Voltage - Rated AC :
- 300V
- Length - Tail :
- 3.5mm
- Mounting Type :
- Through Hole
- Pitch :
- 0.200 5.08mm
- Series :
- Termi-Blok, Buchanan
- Connector Type :
- Header
- Radiation Hardening :
- No
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Packaging :
- Bulk
- Fastening Method :
- Connector
- Current Rating :
- 15A
- Published :
- 2007
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 12mm
- Max Current Rating :
- 15A
- Voltage - Rated :
- 300V
- Header Orientation :
- 90°, Right Angle
- Termination Style :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Ways :
- 23
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Number of Positions :
- 3
- ELV :
- Compliant
- Contact Tail Length :
- 0.138 3.50mm
- Color :
- Black
- Number of Positions Per Level :
- 3
- Number of Levels :
- 1
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- COPPER ALLOY
- Datasheets
- 796639-3
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796639-3 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Termi-Blok, Buchanan belongs to the Termi-Blok, Buchanan Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~110°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
796639-3 Features
Termi-Blok, Buchanan series
796639-3 Applications
There are a lot of TE Connectivity AMP Connectors
796639-3 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
