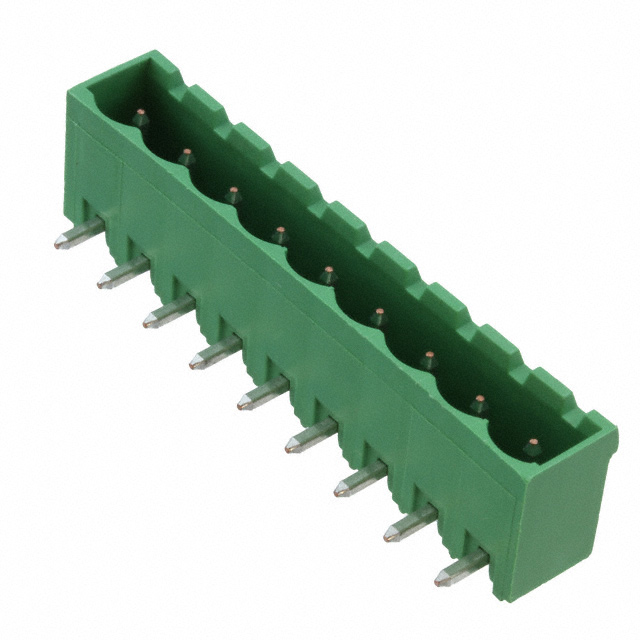

796638-9
Or copy the link below:
- Mfr.Part #
- 796638-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 9POS 90DEG 5.08MM
- Stock
- 61
- In Stock ：
- 61
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Lead Free :
- Lead Free
- Voltage - Rated AC :
- 300V
- Max Current Rating :
- 15A
- Pitch :
- 0.200 5.08mm
- Radiation Hardening :
- No
- Voltage - Rated :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Length - Tail :
- 3.5mm
- Current :
- 15A
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- RoHS Compliant
- Series :
- Termi-Blok, Buchanan
- Number of Positions Per Level :
- 9
- Contact Tail Length :
- 0.138 3.50mm
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Voltage :
- 300V
- ELV :
- Compliant
- Color :
- Green
- Contact Mating Finish :
- Tin
- Length :
- 47.5mm
- Insulation Height :
- 0.329 8.36mm
- Contact Material :
- COPPER ALLOY
- Height :
- 8.35mm
- Header Orientation :
- 90°, Right Angle
- Mount :
- Through Hole
- Termination Style :
- Solder
- Published :
- 2007
- Current Rating :
- 15A
- Width :
- 12mm
- Plating Thickness :
- 7μm
- Operating Temperature :
- -40°C~110°C
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Datasheets
- 796638-9
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796638-9 Overview
The packaging is Header.Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the Termi-Blok, Buchanan Series.Mounted by Through Hole.Device runs at -40°C~110°C Operating Temperature.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
796638-9 Features
Termi-Blok, Buchanan series
796638-9 Applications
There are a lot of TE Connectivity AMP Connectors
796638-9 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
