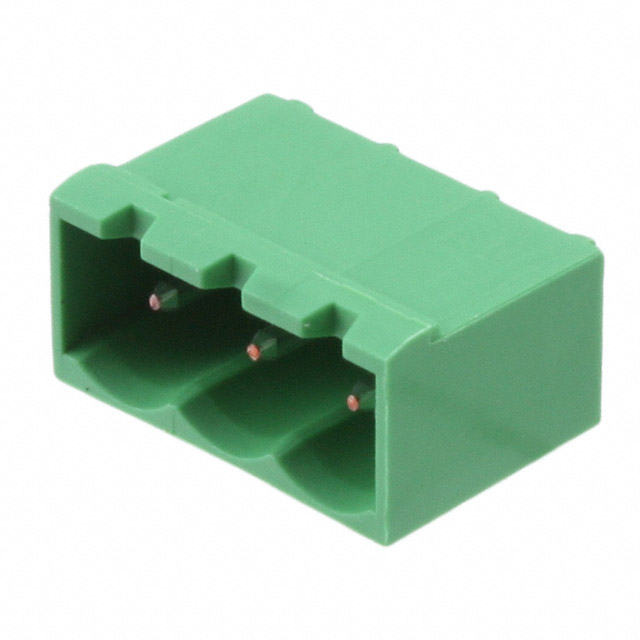

796638-3
Or copy the link below:
- Mfr.Part #
- 796638-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 5.08MM
- Stock
- 2,016
- In Stock ：
- 2,016
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Header Orientation :
- 90°, Right Angle
- Connector Type :
- Header
- Factory Lead Time :
- 12 Weeks
- REACH SVHC :
- Unknown
- Max Current Rating :
- 15A
- Radiation Hardening :
- No
- Depth :
- 12mm
- Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- ELV :
- Compliant
- Contact Tail Length :
- 0.138 3.50mm
- Pitch :
- 0.200 5.08mm
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- RoHS Compliant
- Color :
- Green
- Lead Free :
- Lead Free
- Published :
- 2007
- Current :
- 15A
- Plating Thickness :
- 7μm
- Current Rating :
- 15A
- ECCN Code :
- EAR99
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Approval Agency :
- UL
- Material Flammability Rating :
- UL94 V-0
- Length :
- 17.06mm
- Length - Tail :
- 3.5mm
- Number of Levels :
- 1
- Termination Style :
- Solder
- Voltage - Rated :
- 300V
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C~110°C
- Number of Positions :
- 3
- Voltage :
- 300V
- Series :
- Termi-Blok, Buchanan
- Insulation Height :
- 0.329 8.36mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- Max Voltage Rating (AC) :
- 300V
- Contact Mating Finish :
- Tin
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Poles :
- 3
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Datasheets
- 796638-3
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796638-3 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Termi-Blok, Buchanan Series.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
796638-3 Features
Termi-Blok, Buchanan series
796638-3 Applications
There are a lot of TE Connectivity AMP Connectors
796638-3 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
