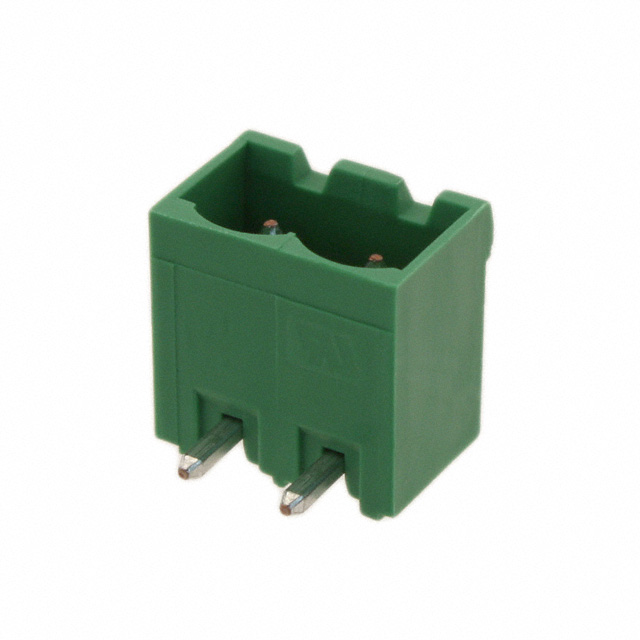

796638-2
Or copy the link below:
- Mfr.Part #
- 796638-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS 90DEG 5.08MM
- Stock
- 39,726
- In Stock ：
- 39,726
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Insulation Height :
- 0.329 8.36mm
- Length - Tail :
- 3.5mm
- Max Voltage Rating (AC) :
- 300V
- Current Rating :
- 15A
- HTS Code :
- 8536.69.40.40
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Number of Levels :
- 1
- Radiation Hardening :
- No
- Contact Tail Length :
- 0.138 3.50mm
- Header Orientation :
- 90°, Right Angle
- Max Current Rating :
- 15A
- Plating Thickness :
- 7μm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Pitch :
- 0.200 5.08mm
- Length :
- 11.98mm
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 26 Weeks
- Number of Poles :
- 2
- RoHS Status :
- RoHS Compliant
- Published :
- 2007
- Orientation :
- RIGHT ANGLE
- Operating Temperature :
- -40°C~110°C
- Color :
- Green
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Contact Mating Finish :
- Tin
- Series :
- Termi-Blok, Buchanan
- ELV :
- Compliant
- Voltage - Rated :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Gender :
- Male
- Wire/Cable Gauge :
- 12 AWG
- Voltage :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 2
- Mount :
- Through Hole
- Current :
- 15A
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Depth :
- 12mm
- Termination Style :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Datasheets
- 796638-2
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796638-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Termi-Blok, Buchanan Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
796638-2 Features
Termi-Blok, Buchanan series
796638-2 Applications
There are a lot of TE Connectivity AMP Connectors
796638-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
