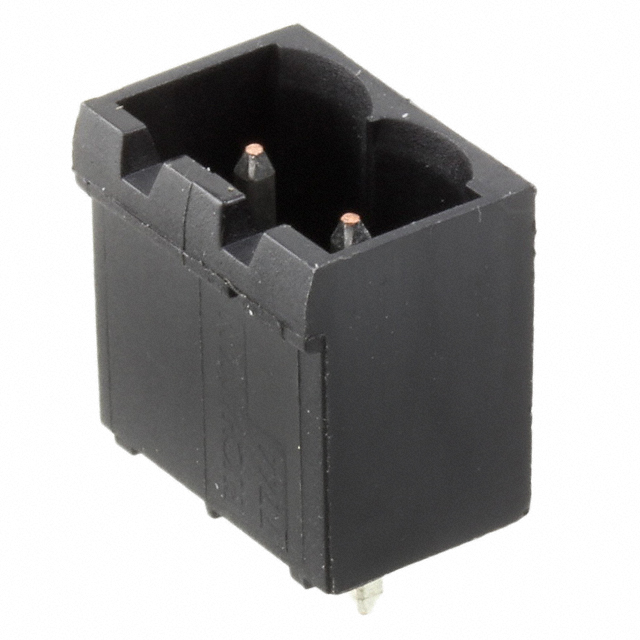

796637-2
Or copy the link below:
- Mfr.Part #
- 796637-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS VERT 5.08MM
- Stock
- 3,324
- In Stock ：
- 3,324
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Connector Type :
- Header
- Contact Tail Length :
- 0.138 3.50mm
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2007
- Number of Ways :
- 2
- Gender :
- Male
- Number of Decks :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Fastening Method :
- Connector
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Header Orientation :
- Vertical
- Mount :
- Through Hole
- Voltage :
- 300V
- Number of Levels :
- 1
- Series :
- Termi-Blok, Buchanan
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Current :
- 15A
- Factory Lead Time :
- 12 Weeks
- ELV :
- Compliant
- Termination Style :
- Solder
- Current Rating :
- 15A
- Pitch :
- 0.200 5.08mm
- REACH SVHC :
- Unknown
- Contact Mating Finish :
- Tin
- Max Current Rating :
- 15A
- Length - Tail :
- 3.5mm
- Operating Temperature :
- -40°C~110°C
- Flammability Rating :
- UL94 V-0
- HTS Code :
- 8536.69.40.40
- Depth :
- 8.35mm
- Length :
- 11.98mm
- Insulation Height :
- 0.472 12.00mm
- Max Voltage Rating (AC) :
- 300V
- Number of Positions Per Level :
- 2
- Safety Approval :
- UL
- Contact Material :
- COPPER ALLOY
- Voltage - Rated :
- 300V
- Color :
- Black
- Datasheets
- 796637-2
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796637-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Termi-Blok, Buchanan Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -40°C~110°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
796637-2 Features
Termi-Blok, Buchanan series
796637-2 Applications
There are a lot of TE Connectivity AMP Connectors
796637-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
