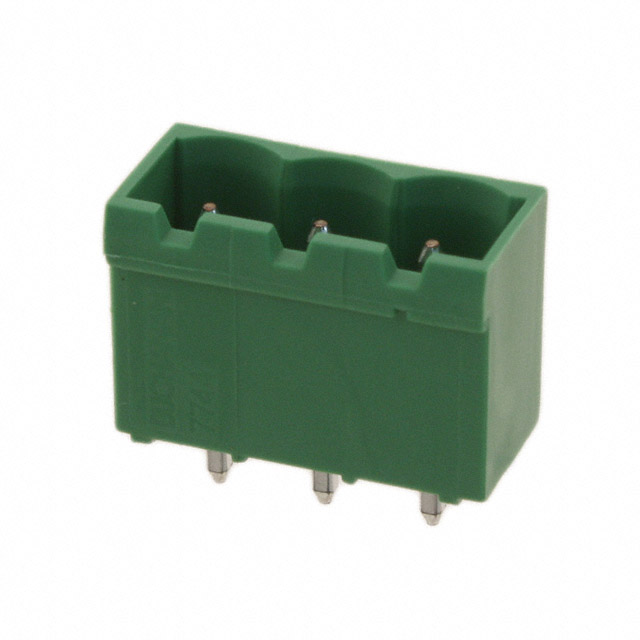

796636-3
Or copy the link below:
- Mfr.Part #
- 796636-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS VERT 5.08MM
- Stock
- 13,794
- In Stock ：
- 13,794
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Max Current Rating :
- 15A
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.200 5.08mm
- Fastening Method :
- Connector
- Published :
- 2003
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Insulation Height :
- 0.472 12.00mm
- Voltage - Rated :
- 300V
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- Contact Material :
- COPPER ALLOY
- Contact Tail Length :
- 0.138 3.50mm
- Factory Lead Time :
- 21 Weeks
- Safety Approval :
- UL
- Length :
- 17.06mm
- Reach Compliance Code :
- Unknown
- Termination Style :
- Solder
- Number of Decks :
- 1
- Header Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C~110°C
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Mating Finish :
- Tin
- Number of Positions :
- 3
- ECCN Code :
- EAR99
- Number of Ways :
- 23
- Color :
- Green
- Series :
- Termi-Blok, Buchanan
- Datasheets
- 796636-3
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796636-3 Overview
The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Termi-Blok, Buchanan Series, it belongs to the range of products of that series.-40°C~110°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
796636-3 Features
Termi-Blok, Buchanan series
796636-3 Applications
There are a lot of TE Connectivity AMP Connectors
796636-3 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
