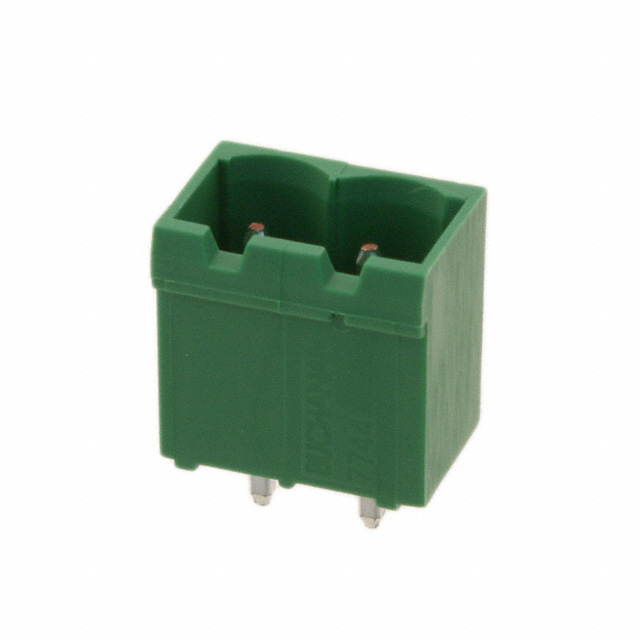

796636-2
Or copy the link below:
- Mfr.Part #
- 796636-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 2POS VERT 5.08MM
- Stock
- 26,112
- In Stock ：
- 26,112
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Connector Type :
- Header
- Safety Approval :
- UL
- Gender :
- Male
- Voltage - Rated :
- 300V
- Fastening Method :
- Connector
- Number of Ways :
- 22
- Published :
- 2007
- Number of Positions Per Level :
- 2
- Depth :
- 8.35mm
- Packaging :
- Bulk
- Number of Rows :
- 1
- Max Current Rating :
- 15A
- Number of Decks :
- 1
- Pitch :
- 0.200 5.08mm
- Width :
- 8.35mm
- HTS Code :
- 8536.69.40.40
- Contact Mating Finish :
- Tin
- Mount :
- Through Hole
- Contact Tail Length :
- 0.138 3.50mm
- Material :
- Nylon
- Current :
- 15A
- Orientation :
- Straight
- Series :
- Termi-Blok, Buchanan
- Termination Style :
- Solder
- Color :
- Green
- Insulation Height :
- 0.472 12.00mm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Max Voltage Rating (AC) :
- 300V
- Voltage - Rated AC :
- 300V
- REACH SVHC :
- Unknown
- Length - Tail :
- 3.5mm
- Number of Levels :
- 1
- Length :
- 11.98mm
- Voltage :
- 300V
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 21 Weeks
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C~110°C
- Material Flammability Rating :
- UL94 V-0
- Header Orientation :
- Vertical
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- COPPER ALLOY
- Radiation Hardening :
- No
- Datasheets
- 796636-2
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
796636-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Termi-Blok, Buchanan Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
796636-2 Features
Termi-Blok, Buchanan series
796636-2 Applications
There are a lot of TE Connectivity AMP Connectors
796636-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
