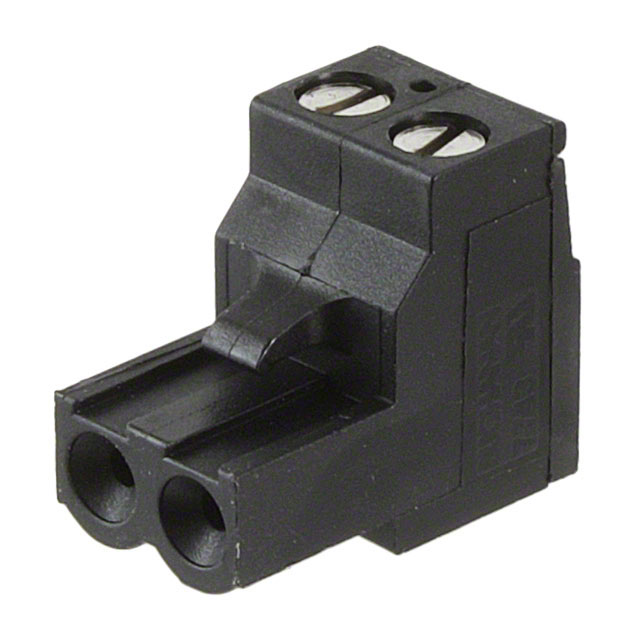

796635-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Mount :

Cable, Through Hole

Wire Gauge (Max) :

30 AWG

Number of Levels :

1

Termination :

Screw

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

13 Weeks

Wire Strip Length :

6-7.5mm

Max Voltage Rating (AC) :

300V

Radiation Hardening :

No

Voltage - Rated AC :

300V

Screw Size :

M3

Operating Temperature :

-40°C~110°C

Lead Free :

Lead Free

Pitch :

0.200 5.08mm

Type :

Plug, Female Sockets

Housing Material :

Polyamide (PA66), Nylon 6/6

Housing Color :

Black

Feature :

Retention Latches (Non-Wire Side)

Published :

2007

Contact Mating Finish :

Tin

Length :

10.16mm

Voltage - Rated :

300V

Number of Positions :

2

Wire Gauge or Range - mm² :

0.05-3mm2

Contact Material :

Phosphor Bronze

ELV :

Compliant

Voltage - UL :

300V

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Number of Circuits :

2

RoHS Status :

RoHS Compliant

Color :

Black

Number of Rows :

1

Depth :

18.4mm

Connector Type :

PLUG

Series :

Buchanan

Insulation Height :

0.610 15.49mm

Flammability Rating :

UL94 V-0

Current Rating :

15A

Current - UL :

15A

Contact Plating :

Tin

Max Current Rating :

15A

Max Operating Temperature :

105°C

Wire Gauge or Range - AWG :

12-30 AWG

Number of Contacts :

2

Termination Style :

Screw - Rising Cage Clamp

Thread Size :

M3

Number of Positions Per Level :

2

Wire Gauge (Min) :

30 AWG

Plug Wire Entry :

180°

Min Operating Temperature :

-40°C

Current :

15A

Orientation :

RIGHT ANGLE

Number of Poles :

2

Positions Per Level :

2

Voltage :

300V

Mounting Type :

Free Hanging (In-Line)

Max Supply Voltage (AC) :

300V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk
