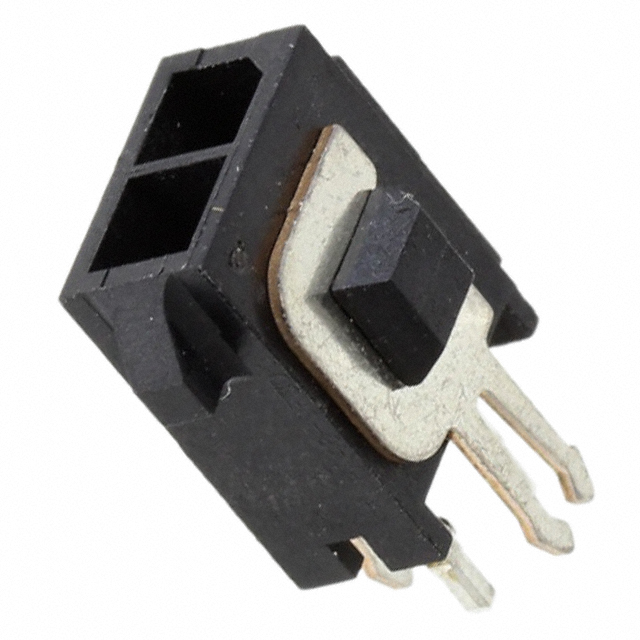

794680-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Fastening Type :

Locking Ramp

Connector Type :

Header

Contact Finish Thickness - Post :

100.0μin 2.54μm

Current Rating :

5A

Contact Gender :

Male

Contact Shape :

Square

Housing Material :

Nylon

Series :

Micro MATE-N-LOK

Number Of PCB Rows :

2

Number of Positions Loaded :

All

Length :

7mm

Withdrawl Force-Min :

.695 N

Contact Finish Thickness - Mating :

100.0μin 2.54μm

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.30

JESD-609 Code :

e0

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Empty Shell :

No

Termination :

Solder

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Number of Ports :

1

Orientation :

Straight

Contact Material :

Brass

Published :

2011

Radiation Hardening :

No

PCB Contact Pattern :

RECTANGULAR

ELV :

Non-Compliant

Mount :

Through Hole

Row Spacing - Mating :

0.118 (3.00mm)

Operating Temperature :

-40°C~105°C

Number of Positions :

2

RoHS Status :

Non-RoHS Compliant

Material Flammability Rating :

UL94 V-0

Lead Free :

Contains Lead

Insulation Color :

Black

Feature :

Board Lock

Lead Length :

3.18mm

Applications :

GENERAL PURPOSE

Filter Feature :

No

Contact Plating :

Lead, Tin

Reference Standard :

UL, CSA

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Packaging :

Tray

Current Rating (Amps) :

Varies by WireGAuge

Pbfree Code :

No

Contact Finish - Mating :

Tin-Lead

Number of Rows :

2

Pitch :

3mm

Factory Lead Time :

11 Weeks

Insulation Height :

0.364 9.25mm

Contact Length - Post :

0.125 3.18mm

DIN Conformance :

No

Mixed Contacts :

No

Number of Conductors :

ONE

Max Voltage Rating (AC) :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polyamide (PA), Nylon

Depth :

9.24mm

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Mounting Type :

Through Hole
