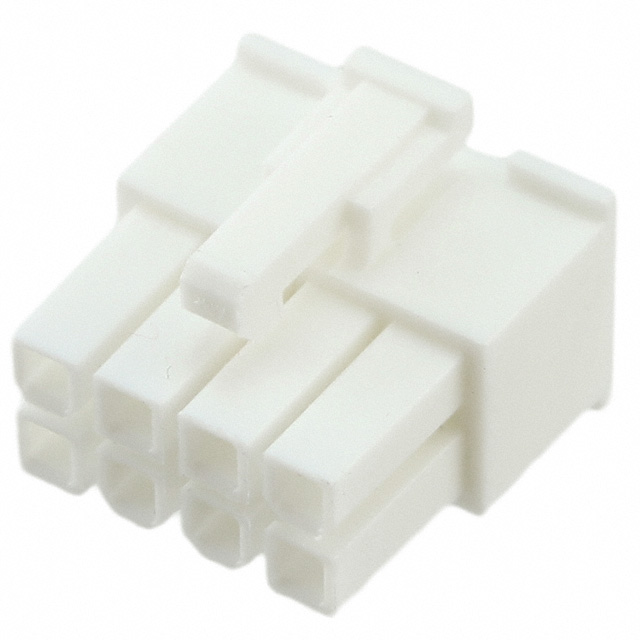

794657-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Nylon

Number of Rows :

2

ELV :

Compliant

Mount :

Cable, Free Hanging

Fastening Type :

Latch Lock

IEC Conformance :

No

Depth :

18.8mm

Mixed Contacts :

No

Color :

Natural

UL Flammability Code :

94V-0

DIN Conformance :

No

Insulation Resistance :

1000000000Ohm

Contact Design :

PREASSEM CONN

Factory Lead Time :

10 Weeks

Note :

Contacts Not Included

Max Voltage Rating (AC) :

600V

Radiation Hardening :

No

Contact Type :

Female Socket

Flammability Rating :

UL94 V-0

Series :

AMP-DUAC

Min Operating Temperature :

-67°C

Max Operating Temperature :

221°C

Reliability :

COMMERCIAL

Current Rating :

9A

Body Breadth :

0.461 inch

Row Spacing :

0.165 (4.20mm)

Lead Free :

Not Applicable

Wire Gauge (Min) :

18 AWG

Pitch :

0.165 4.20mm

Polarization Key :

POLARIZED HOUSING

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Orientation :

Straight

Wire Gauge (Max) :

26 AWG

Reference Standard :

UL

Withdrawl Force-Min :

.5004 N

MIL Conformance :

No

REACH SVHC :

Unknown

Voltage - Rated DC :

600V

ECCN Code :

EAR99

Height :

11.7mm

Wire/Cable Gauge :

26 AWG

RoHS Status :

RoHS Compliant

Voltage - Rated :

600V

Published :

2004

Width :

18.796mm

Number of Positions :

8

Packaging :

Bulk

Contact Termination :

Crimp

Housing Color :

White

Pbfree Code :

yes

VDE Tested :

yes

Length :

18.034mm

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

8

Rated Current (Signal) :

9A

Connector Type :

Receptacle
