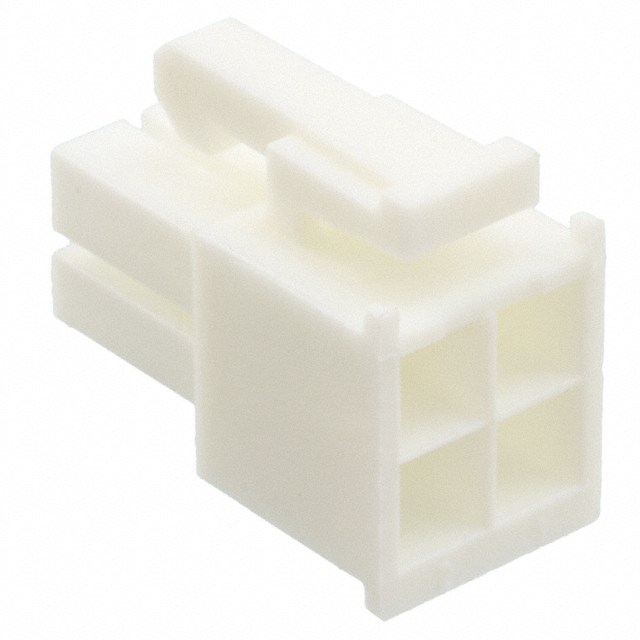

794657-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Length :

9.7mm

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Min Operating Temperature :

-67°C

Wire/Cable Gauge :

26 AWG

ELV :

Compliant

Note :

Contacts Not Included

Insulation Resistance :

1000000000Ohm

Lead Free :

Not Applicable

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Latch Lock

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Depth :

18.8mm

Contact Finish - Mating :

NOT SPECIFIED

Row Spacing :

0.165 (4.20mm)

ECCN Code :

EAR99

DIN Conformance :

No

Series :

AMP-DUAC

Factory Lead Time :

13 Weeks

Housing Color :

White

Flammability Rating :

UL94 V-0

Housing Material :

Nylon

Wire Gauge (Min) :

18 AWG

Orientation :

Straight

Number of Positions :

4

Number of Rows :

2

Connector Type :

Receptacle

Current Rating :

9A

IEC Conformance :

No

Reference Standard :

UL

Mount :

Cable, Free Hanging

VDE Tested :

yes

Wire Gauge (Max) :

26 AWG

Filter Feature :

No

Contact Material :

NOT SPECIFIED

Reliability :

COMMERCIAL

REACH SVHC :

No SVHC

Total Number of Contacts :

4

Height :

11.7mm

Contact Design :

PREASSEM CONN

Contact Type :

Female Socket

Published :

2004

Pbfree Code :

yes

Color :

Natural

Mounting Type :

Free Hanging (In-Line)

Contact Termination :

Crimp

Width :

18.796mm

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

600V

Voltage - Rated :

250V

Rated Current (Signal) :

9A

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Max Operating Temperature :

221°C

Voltage - Rated DC :

600V

Pitch :

0.165 4.20mm
