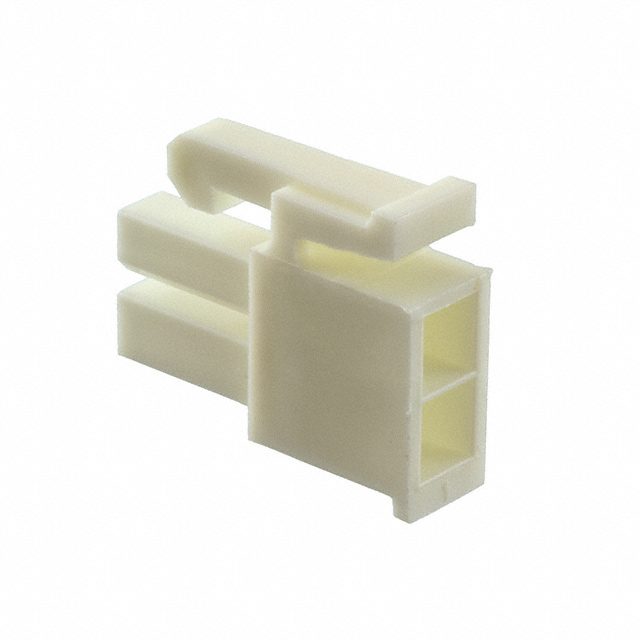

794657-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

REACH SVHC :

No SVHC

Wire/Cable Gauge :

26 AWG

Reference Standard :

UL

Height :

11.7mm

Wire Gauge (Max) :

26 AWG

IEC Conformance :

No

ECCN Code :

EAR99

Insulation Resistance :

1000000000Ohm

Series :

AMP-DUAC

Mixed Contacts :

No

Contact Type :

Female Socket

Contact Gender :

FEMALE

Color :

Natural

Pitch :

4.2mm

Max Operating Temperature :

221°C

Total Number of Contacts :

2

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Cable, Free Hanging

Voltage - Rated DC :

600V

Wire Gauge (Min) :

18 AWG

Note :

Contacts Not Included

Lead Free :

Lead Free

Connector Type :

Receptacle

DIN Conformance :

No

HTS Code :

8536.69.40.40

Published :

2004

Housing Color :

White

RoHS Status :

RoHS Compliant

Housing Material :

Nylon

Width :

18.796mm

Body Breadth :

0.461 inch

Min Operating Temperature :

-67°C

UL Flammability Code :

94V-0

Withdrawl Force-Min :

.5004 N

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Row Spacing :

0.165 (4.20mm)

Number of Rows :

2

Contact Termination :

Crimp

VDE Tested :

yes

Depth :

18.8mm

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated AC :

600V

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating (AC) :

600V

Packaging :

Bulk

Current Rating :

9A

ELV :

Compliant

Factory Lead Time :

16 Weeks

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Length :

5.588mm

Filter Feature :

No

Rated Current (Signal) :

9A

Radiation Hardening :

No

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Number of Positions :

2

Fastening Type :

Latch Lock
