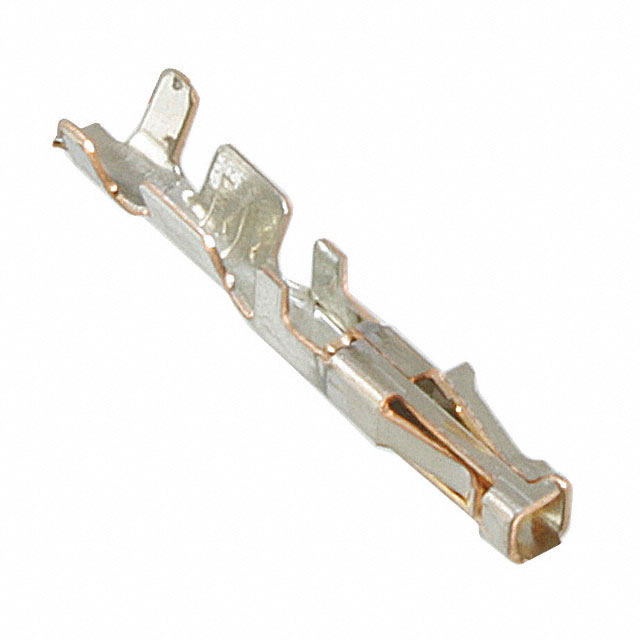

794610-3
Or copy the link below:
- Mfr.Part #
- 794610-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 20-24AWG CRIMP GOLD
- Stock
- 38,987
- In Stock ：
- 38,987
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Wire Gauge (Max) :
- 24 AWG
- Factory Lead Time :
- 12 Weeks
- Length :
- 12.53mm
- Circuit Application :
- Power
- Termination :
- Crimp
- Max Voltage Rating (AC) :
- 250V
- Plating Thickness :
- 1.27μm
- Contact Material :
- Bronze
- Wire Gauge :
- 20-24 AWG
- Number of Ports :
- 1
- Wire/Cable Gauge :
- 20 AWG
- Published :
- 2008
- Max Operating Temperature :
- 221°C
- Contact Termination :
- Crimp
- Voltage - Rated :
- 250V
- Number of Contacts :
- 1
- Depth :
- 2.67mm
- Contact Current Rating :
- 5A
- Lead Free :
- Not Applicable
- Contact Gender :
- FEMALE
- Wire Gauge (Min) :
- 20 AWG
- REACH SVHC :
- Unknown
- RoHS Status :
- Non-RoHS Compliant
- Pin or Socket :
- Socket
- Connector Type :
- Socket
- Packaging :
- Bulk
- Height :
- 1.93mm
- Contact Finish :
- Gold
- Mount :
- CABLE
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Min Operating Temperature :
- -40°C
- Wire/Cable Type :
- Discrete
- Contact Plating :
- Gold
- Number of Terminations :
- 1
- Underplate Material :
- Nickel
- Series :
- Micro MATE-N-LOK
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 1.52 mm
- Type :
- Stamped
- Orientation :
- Straight
- Gender :
- FEMALE
- Current Rating :
- 5A
- ELV :
- Non-Compliant
- Datasheets
- 794610-3
794610-3 Documents
794610-3 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
