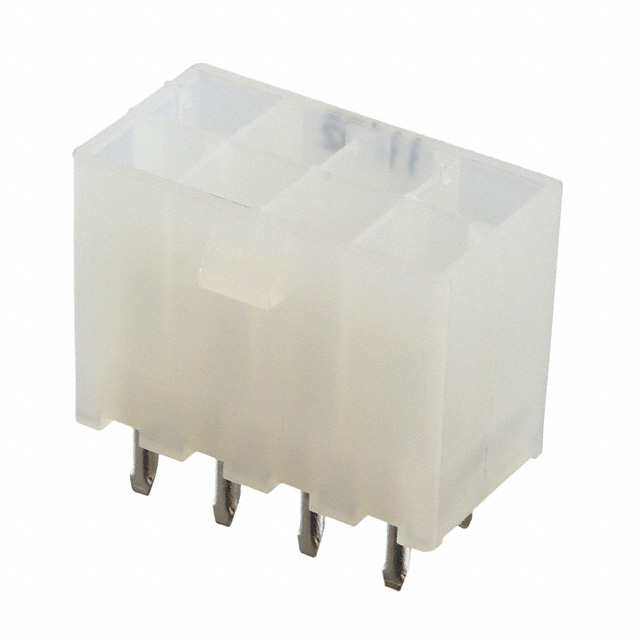

794486-1
Or copy the link below:
- Mfr.Part #
- 794486-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4.2MM
- Stock
- 31,322
- In Stock ：
- 31,322
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Number of Rows :
- 2
- Contact Length - Post :
- 0.138 3.50mm
- UL Flammability Code :
- 94V-0
- Mount :
- Through Hole
- ELV :
- Non-Compliant
- Operating Temperature :
- -55°C~105°C
- Style :
- Board to Board or Cable
- Published :
- 2003
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header
- Number of Signal Positions :
- 8
- Mounting Type :
- Through Hole
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Housing Color :
- White
- Option :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 4 Wall
- Filter Feature :
- No
- Current Rating :
- 9A
- PCB Mounting Orientation :
- Vertical
- Insulation Height :
- 0.504 12.80mm
- Termination :
- Solder
- IEC Conformance :
- No
- Contact Plating :
- Lead, Tin
- Lead Free :
- Contains Lead
- Width :
- 10mm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Insulation Color :
- Natural
- MIL Conformance :
- No
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 6 Weeks
- Fastening Type :
- Locking Ramp
- Pitch - Mating :
- 0.165 4.20mm
- Mixed Contacts :
- No
- Series :
- AMP-DUAC
- Voltage - Rated :
- 600VAC
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- JESD-609 Code :
- e0
- Packaging :
- Bulk
- Contact Finish - Mating :
- Tin-Lead
- Contact Type :
- Male Pin
- Datasheets
- 794486-1
AMP-DUAC Series 2-Row Header Solder Copper Alloy Bulk Through Hole Tin-Lead Polyamide (PA), Nylon Board to Board or Cable 0.504 12.80mm Height
794486-1 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the AMP-DUAC Series.It is mounted by Through Hole.It operates at an operating temperature of -55°C~105°C.
794486-1 Features
AMP-DUAC series
794486-1 Applications
There are a lot of TE Connectivity AMP Connectors
794486-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
