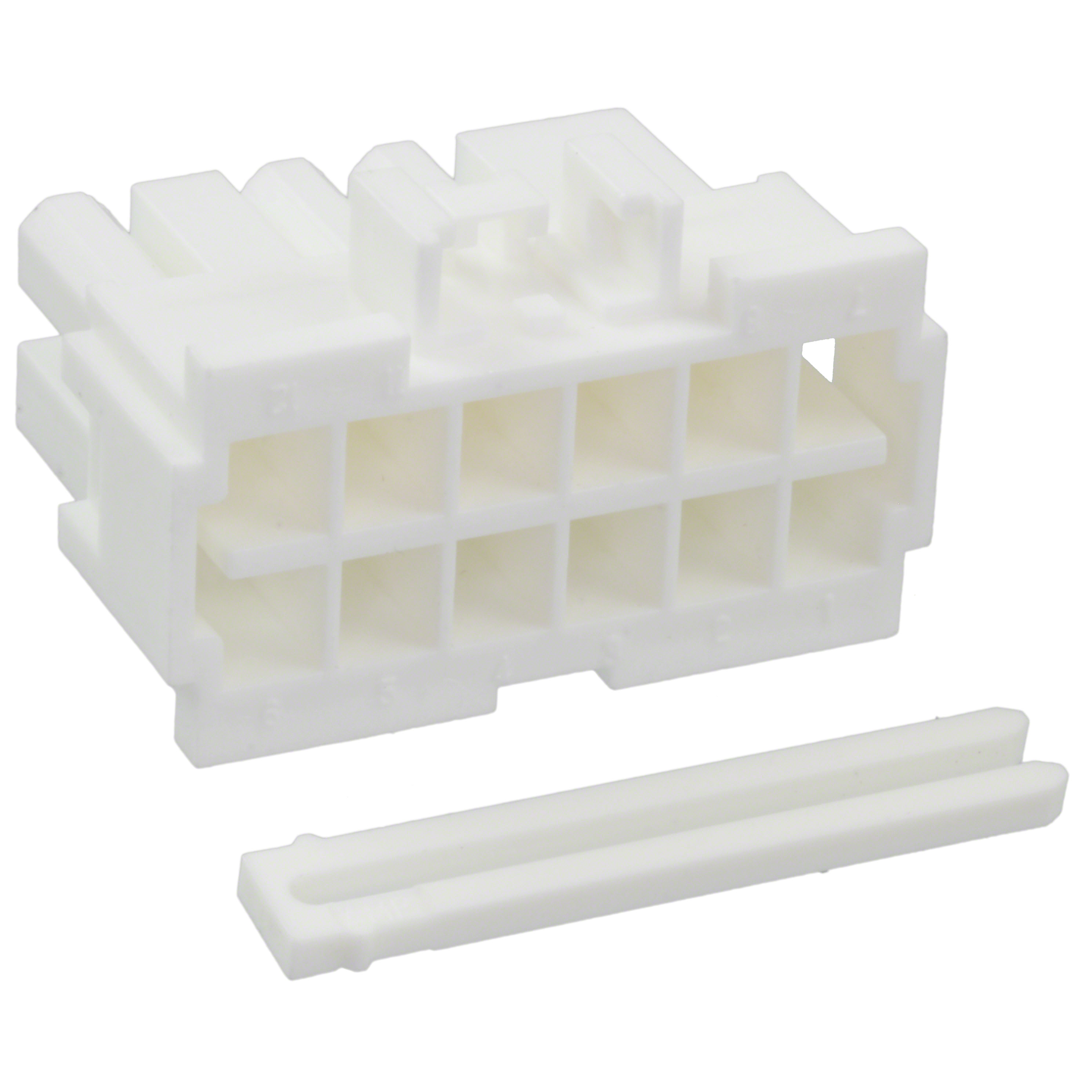

794322-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Lead Free :

Lead Free

Mixed Contacts :

No

Connector Type :

Receptacle, Socket

Number of Rows :

2

Approval Agency :

CSA

Total Number of Contacts :

12

VDE Tested :

yes

Orientation :

Straight

Housing Material :

PBT

Max Operating Temperature :

105°C

Empty Shell :

yes

Dielectric Withstanding Voltage :

1800VDC V

Row Spacing - Mating :

5.5 mm

Row Spacing :

0.165 (4.20mm)

Features :

--

Length :

28.6mm

Body Breadth :

0.594 inch

ELV :

Compliant

Mount :

Free Hanging

ECCN Code :

EAR99

Note :

Contacts Not Included

Color :

Natural

Width :

19.6mm

Mounting Type :

Free Hanging (In-Line)

IEC Conformance :

No

Pitch :

4.2mm

DIN Conformance :

No

Pbfree Code :

yes

Contact Type :

--

Body Depth :

0.77 inch

Gender :

FEMALE

Additional Feature :

AMP-DUAC/PL

Contact Style :

SQ PIN-SKT

Number of Conductors :

ONE

UL Flammability Code :

94V-0

RoHS Status :

RoHS Compliant

Series :

AMP-DUAC

HTS Code :

8536.69.40.30

Height :

15.1mm

Number of Positions :

12

Contact Termination :

--

Radiation Hardening :

No

Insulation Resistance :

1000000Ohm

Min Operating Temperature :

-55°C

Reliability :

COMMERCIAL

Shell Material :

PBT

Fastening Type :

Latch

MIL Conformance :

No

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Reference Standard :

UL

Filter Feature :

No
