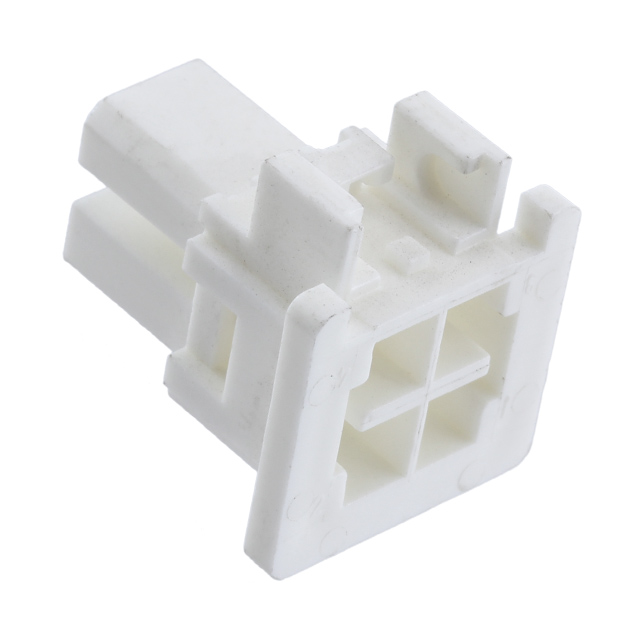

794318-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Height :

15.1mm

Color :

Natural

Shell Material :

PBT

Min Operating Temperature :

-67°C

Mounting Type :

Free Hanging (In-Line)

ELV :

Compliant

IEC Conformance :

No

Series :

AMP-DUAC

Insulation Resistance :

1000000Ohm

Operating Supply Voltage :

250V

Contact Type :

Female Socket

Body Depth :

0.77 inch

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Retention :

Without

Number of Conductors :

ONE

Reference Standard :

UL

Number of Positions :

4

VDE Tested :

yes

Length :

19.6mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Mount :

Cable, Free Hanging

Sealable :

No

Mixed Contacts :

No

Current Rating :

9A

Housing Color :

White, Natural

Approval Agency :

CSA

Width :

15.86mm

Factory Lead Time :

11 Weeks

Pitch :

4.2mm

MIL Conformance :

No

ECCN Code :

EAR99

Max Voltage Rating (AC) :

600V

DIN Conformance :

No

Empty Shell :

yes

Number of Rows :

2

Orientation :

Straight

Published :

1998

Total Number of Contacts :

4

Max Operating Temperature :

221°C

Note :

Contacts Not Included

Dielectric Withstanding Voltage :

1800VDC V

Contact Termination :

Crimp

Fastening Type :

Locking Ramp

Flammability Rating :

UL94 V-0

Housing Material :

PBT

Reliability :

COMMERCIAL

Row Spacing :

139.7 mm

Connector Type :

Receptacle
