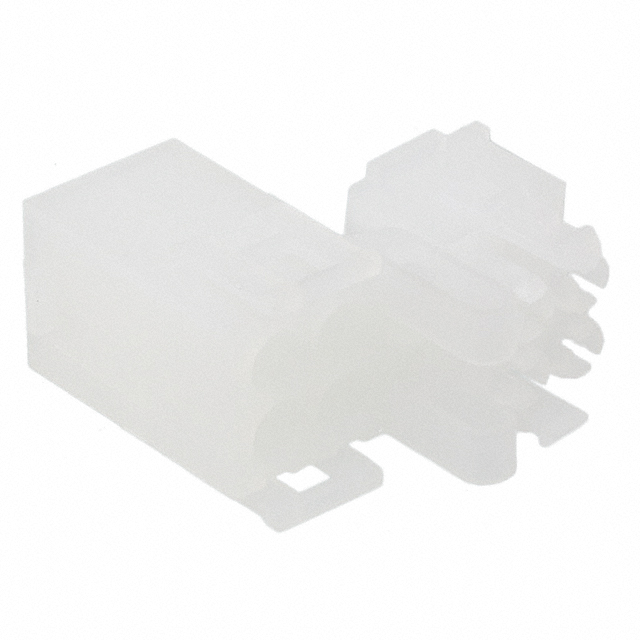

794242-1
Or copy the link below:
- Mfr.Part #
- 794242-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 4POS 4.14MM
- Stock
- 768
- In Stock ：
- 768
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Flammability Rating :
- UL94 V-2
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 600V
- Packaging :
- Bulk
- Empty Shell :
- No
- Number of Contacts :
- 4
- Contact Retention :
- Without
- Min Operating Temperature :
- -67°C
- Approval Agency :
- CSA
- Length :
- 14.5mm
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Filter Feature :
- No
- Color :
- Natural
- ELV :
- Compliant
- Max Operating Temperature :
- 221°C
- Pitch :
- 0.163 4.14mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- DIN Conformance :
- No
- Row Spacing :
- 0.163 (4.14mm)
- Series :
- Mini-Universal MATE-N-LOK II
- Note :
- Contacts Not Included
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Shell Material :
- Polyamide
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2003
- Contact Termination :
- Crimp
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Not Applicable
- Option :
- GENERAL PURPOSE
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Connector Type :
- Receptacle
- Gender :
- FEMALE
- Pbfree Code :
- yes
- Housing Material :
- Nylon
- Number of Rows :
- 2
- Orientation :
- Straight
- Datasheets
- 794242-1
2 Rows Receptacle Bulk Natural Free Hanging (In-Line) Male Pin Crimp Mini-Universal MATE-N-LOK II Nylon
794242-1 Overview
A Receptacle packaging is included.It's mounted Free Hanging (In-Line).We use a Bulk case to package the product.It's from the Mini-Universal MATE-N-LOK II Series.Operating voltage is 600V.
794242-1 Features
Mini-Universal MATE-N-LOK II series
794242-1 Applications
There are a lot of TE Connectivity AMP Connectors
794242-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
