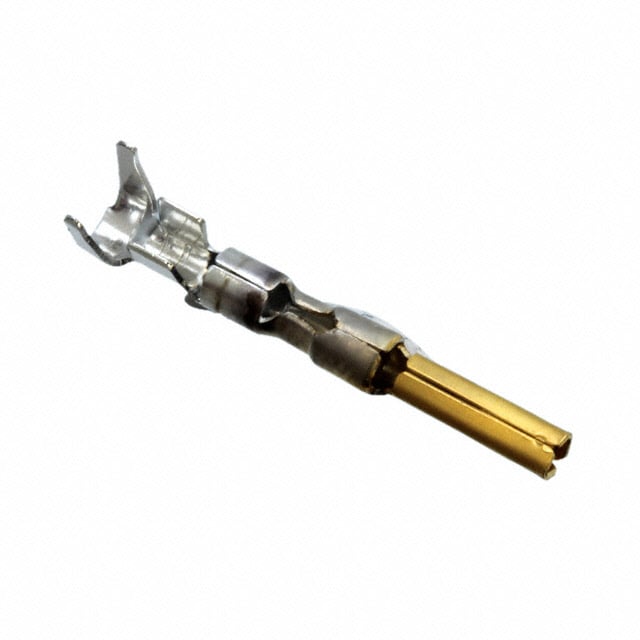

794221-3
Or copy the link below:
- Mfr.Part #
- 794221-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 18-22AWG CRIMP GOLD
- Stock
- 5,447
- In Stock ：
- 5,447
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Contact Gender :
- FEMALE
- RoHS Status :
- Non-RoHS Compliant
- VDE Tested :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Housing Material :
- Nylon
- Mount :
- CABLE
- Lead Free :
- Not Applicable
- Contact Finish :
- Gold
- Max Current Rating :
- 10.5A
- Circuit Application :
- Power
- Depth :
- 3.81mm
- Series :
- Mini-Universal MATE-N-LOK II
- Voltage - Rated :
- 600V
- Contact Termination :
- Crimp
- Wire/Cable Gauge :
- 18 AWG
- Contact Material :
- Brass
- Max Operating Temperature :
- 105°C
- Wire/Cable Type :
- Discrete
- Current Rating :
- 9.5A
- ELV :
- Non-Compliant
- Packaging :
- Tape and Reel (TR)
- Height :
- 4.42mm
- Published :
- 2008
- Approval Agency :
- UL
- Wire Gauge (Min) :
- 22 AWG
- Underplate Material :
- Nickel
- Connector Support Type :
- CONNECTOR ACCESSORY
- Insulation Diameter :
- 2.3876 mm
- Contact Resistance :
- 20mOhm
- Wire Gauge (Max) :
- 18 AWG
- Wire Gauge :
- 18-22 AWG
- Operating Supply Voltage :
- 600V
- Plating Thickness :
- 2.54μm
- Pin or Socket :
- Socket
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time :
- 11 Weeks
- Length :
- 20.2mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Min Operating Temperature :
- -20°C
- Contact Current Rating :
- 10.5A
- Datasheets
- 794221-3
794221-3 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
