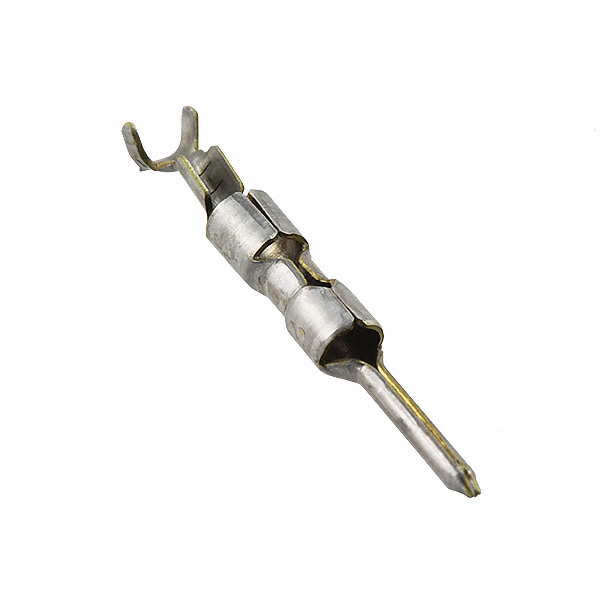

794216-1
Or copy the link below:
- Mfr.Part #
- 794216-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN 26-30AWG CRIMP TIN
- Stock
- 1,332
- In Stock ：
- 1,332
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 1.27 mm
- Length :
- 20.2mm
- Wire Gauge :
- 26-30 AWG
- Min Operating Temperature :
- -67°C
- Contact Finish :
- Tin
- Contact Current Rating :
- 10.5A
- VDE Tested :
- yes
- Pin or Socket :
- Pin
- Connector Support Type :
- CONNECTOR ACCESSORY
- Max Operating Temperature :
- 221°C
- Operating Supply Voltage :
- 600V
- Approval Agency :
- UL
- ELV :
- Compliant
- Packaging :
- Tape and Reel (TR)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 10.5A
- Orientation :
- Straight
- Published :
- 2005
- Lead Free :
- Not Applicable
- Wire Gauge (Min) :
- 26 AWG
- Wire/Cable Type :
- Discrete
- Wire Gauge (Max) :
- 30 AWG
- Contact Resistance :
- 20mOhm
- Factory Lead Time :
- 10 Weeks
- Mount :
- CABLE
- Circuit Application :
- Power
- Contact Termination :
- Crimp
- Series :
- Mini-Universal MATE-N-LOK II
- Wire/Cable Gauge :
- 26 AWG
- Current Rating :
- 9.5A
- Depth :
- 2.67mm
- Datasheets
- 794216-1
794216-1 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
