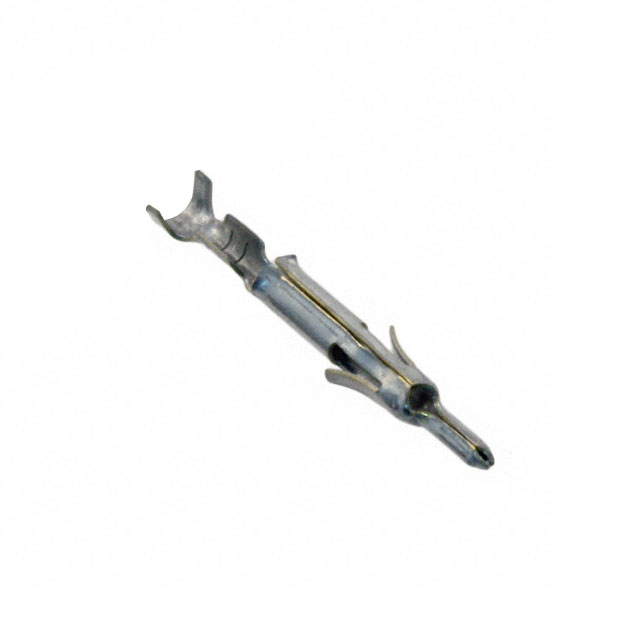

794059-1
Or copy the link below:
- Mfr.Part #
- 794059-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 600
- Datasheet
- Download
- Description
- CONN PIN 26-30AWG TIN CRIMP
- Stock
- 14,400
- In Stock ：
- 14,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Multi Purpose
- REACH SVHC :
- Unknown
- Wire Gauge (Max) :
- 26 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Finish :
- Tin
- Contact Gender :
- Male
- Max Current Rating :
- 9.5A
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 600V
- Termination :
- Crimp
- Approval Agency :
- UL
- Max Operating Temperature :
- 221°C
- Mount :
- CABLE
- Connector Type :
- Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 9.5A
- VDE Tested :
- yes
- Diode Type :
- Pin
- Factory Lead Time :
- 8 Weeks
- Orientation :
- Straight
- Lead Free :
- Lead Free
- Contact Termination :
- Crimp
- Material :
- Brass
- Voltage - Rated :
- 600V
- Current Rating :
- 11.2A
- Wire Gauge (Min) :
- 30 AWG
- Pin or Socket :
- Pin
- ELV :
- Compliant
- Contact Material :
- Brass
- Depth :
- 2.67mm
- Wire/Cable Gauge :
- 26 AWG
- Series :
- Mini-Universal MATE-N-LOK
- Plating :
- Tin
- Circuit Application :
- Power
- Number of Positions :
- 1
- Packaging :
- Bulk
- Contact Plating :
- Tin
- Gender :
- Male
- Wire/Cable Type :
- Discrete
- Contact Resistance :
- 10MOhm
- Package / Case :
- 600
- Radiation Hardening :
- No
- Voltage - Rated AC :
- 600V
- Wire/Cable Diameter :
- 1.27 mm
- Published :
- 2004
- Insulation Diameter :
- 1.27 mm
- Length :
- 17.04mm
- Min Operating Temperature :
- -67°C
- Type :
- Stamped
- Housing Material :
- Plastic
- Wire Gauge :
- 26-30 AWG
- Datasheets
- 794059-1
794059-1 datasheet pdf and Contacts - Multi Purpose product details from TE Connectivity AMP Connectors stock available at Xinshop
