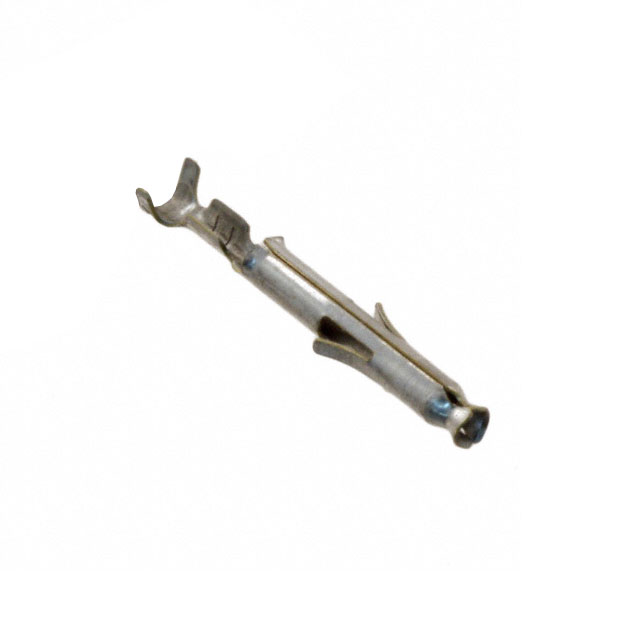

794058-1
Or copy the link below:
- Mfr.Part #
- 794058-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 600
- Datasheet
- Download
- Description
- CONN SOCKET 26-30AWG TIN CRIMP
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Multi Purpose
- Wire Gauge (Min) :
- 26 AWG
- Wire/Cable Type :
- Discrete
- Pbfree Code :
- yes
- Shielding :
- Unshielded
- Number of Positions :
- 1
- Wire/Cable Diameter :
- 1.27 mm
- Pin or Socket :
- Socket
- REACH SVHC :
- Unknown
- MIL Conformance :
- No
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Voltage - Rated AC :
- 600V
- Housing Material :
- Plastic
- Contact Termination :
- Crimp
- Orientation :
- Straight
- Height :
- 1.93mm
- Published :
- 2005
- ELV :
- Compliant
- Current Rating :
- 9.5A
- Packaging :
- Bulk
- Wire Gauge :
- 26-30 AWG
- DIN Conformance :
- No
- Contact Finish :
- Tin
- Length :
- 17.12mm
- Type :
- Stamped
- Series :
- Mini-Universal MATE-N-LOK
- Insulation Diameter :
- 1.27 mm
- Package / Case :
- 600
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- VDE Tested :
- yes
- Radiation Hardening :
- No
- Circuit Application :
- Power
- Wire/Cable Gauge :
- 26 AWG
- Cable Entry-Max :
- 0.05 inch
- Max Operating Temperature :
- 221°C
- Cable Entry-Min :
- 0.035 inch
- Contact Current Rating :
- 11.2A
- Assembly Item Name :
- Contact
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 8 Weeks
- Voltage - Rated :
- 600V
- Depth :
- 2.67mm
- Mount :
- CABLE
- Operating Supply Voltage :
- 600V
- Min Operating Temperature :
- -67°C
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Max) :
- 30 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Max Current Rating :
- 11.2A
- Approval Agency :
- UL
- ECCN Code :
- EAR99
- HTS Code :
- 8536.90.40.00
- IEC Conformance :
- No
- Datasheets
- 794058-1
794058-1 datasheet pdf and Contacts - Multi Purpose product details from TE Connectivity AMP Connectors stock available at Xinshop
