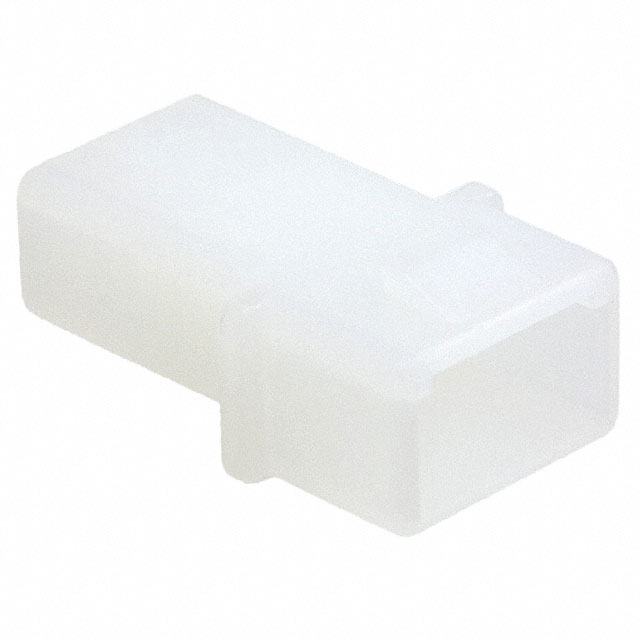

794012-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

ELV :

Compliant

Sealable :

No

Packaging :

Bulk

Wire Gauge (Min) :

14 AWG

IEC Conformance :

No

Operating Supply Voltage :

250V

Filter Feature :

No

Pitch :

0.200 5.08mm

Mounting Type :

Free Hanging (In-Line)

Max Voltage Rating (AC) :

250V

Height :

23.622mm

Color :

Natural

Number of Rows :

1

RoHS Status :

RoHS Compliant

Connector Type :

Receptacle

HTS Code :

8536.69.40.30

Max Operating Temperature :

221°C

Approval Agency :

CSA

Published :

1999

Orientation :

Straight

Contact Retention :

Without

ECCN Code :

EAR99

Length :

13.081mm

Max Voltage Rating (DC) :

250.25kV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

2

Mount :

Free Hanging

Factory Lead Time :

15 Weeks

Depth :

23.88mm

DIN Conformance :

No

Empty Shell :

yes

Contact Termination :

Crimp

Mixed Contacts :

No

Min Operating Temperature :

-67°C

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Flammability Rating :

UL94 V-2

Note :

Contacts Not Included

Wire Gauge (Max) :

30 AWG

MIL Conformance :

No

Lead Free :

Not Applicable

Voltage - Rated :

250V

Series :

Commercial MATE-N-LOK

Pbfree Code :

yes

Fastening Type :

Latch Lock

Wire/Cable Gauge :

30 AWG

Contact Type :

Male Pin

Contact Gender :

FEMALE

Housing Material :

Nylon

REACH SVHC :

Unknown

Width :

8.382mm
