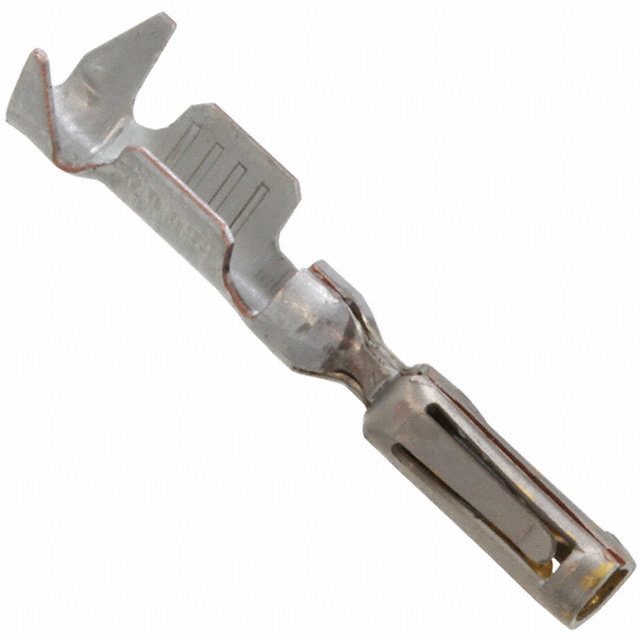

770854-3
Or copy the link below:
- Mfr.Part #
- 770854-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 16-20AWG CRIMP GOLD
- Stock
- 800
- In Stock ：
- 800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Sealable :
- No
- Insulation Diameter :
- 2.7 mm
- Factory Lead Time :
- 14 Weeks
- Contact Termination :
- Crimp
- Total Number of Contacts :
- 23
- HTS Code :
- 8536.69.40.30
- Published :
- 1998
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- IEC Conformance :
- No
- Orientation :
- Straight
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Shell Material :
- Thermoplastic
- Max Operating Temperature :
- 125°C
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Shielding :
- Unshielded
- RoHS Status :
- RoHS Compliant
- Filter Feature :
- No
- Number of Positions :
- 1
- Packaging :
- Bulk
- Height :
- 3.8mm
- UL Flammability Code :
- 94V-0
- ELV :
- Compliant
- Mount :
- CABLE
- Connector Type :
- Connector, Power, Socket
- Pin or Socket :
- Socket
- Mixed Contacts :
- No
- Depth :
- 4.4mm
- Empty Shell :
- yes
- Wire/Cable Gauge :
- 20 AWG
- Lead Free :
- Lead Free
- Wire Gauge (Max) :
- 20 AWG
- Gender :
- Receptacle
- MIL Conformance :
- No
- Body/Shell Style :
- PLUG
- Wire Gauge :
- 16-20 AWG
- Contact Finish :
- Gold
- Series :
- Ampseal
- Contact Finish Thickness :
- 29.5μin 0.75μm
- Contact Material :
- Copper
- REACH SVHC :
- Unknown
- Current Rating :
- 17A
- Min Operating Temperature :
- -40°C
- Length :
- 19.3mm
- Max Current Rating :
- 17A
- Wire Gauge (Min) :
- 16 AWG
- Datasheets
- 770854-3
770854-3 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
