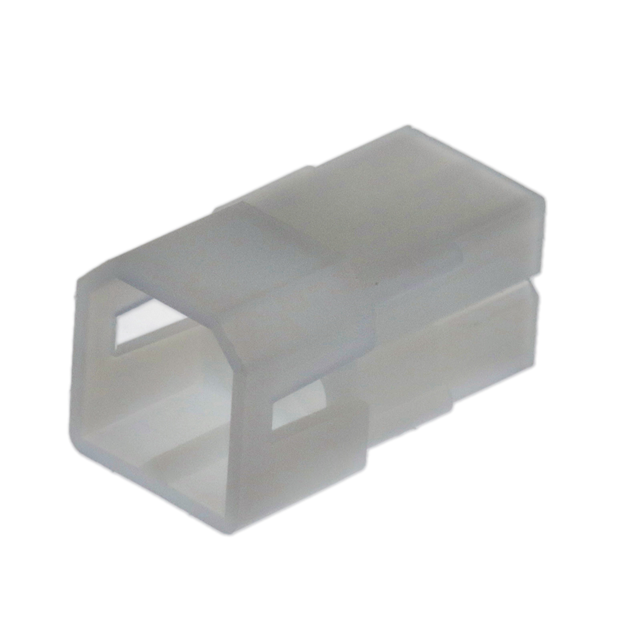

770842-1
Or copy the link below:
- Mfr.Part #
- 770842-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 4POS 5.03MM
- Stock
- 28
- In Stock ：
- 28
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Contact Finish - Mating :
- TIN/GOLD (30) OVER NICKEL
- MIL Conformance :
- No
- Current Rating :
- 13A
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Note :
- Contacts Not Included
- DIN Conformance :
- No
- Sealable :
- No
- Number of Signal Positions :
- 4
- Fastening Type :
- Detent Lock
- Approval Agency :
- CSA
- Empty Shell :
- No
- Contact Type :
- MALE OR FEMALE
- Mounting Type :
- Free Hanging (In-Line)
- Contact Termination :
- Crimp
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Wire Gauge (Max) :
- 14 AWG
- Number of Rows :
- 2
- Housing Material :
- Nylon
- Length :
- 11.15mm
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-2
- Option :
- GENERAL PURPOSE
- Shell Material :
- Polyamide
- Published :
- 2008
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Contact Retention :
- Without
- Row Spacing :
- 0.198 (5.03mm)
- Color :
- Natural
- Max Voltage Rating (AC) :
- 250V
- Wire Gauge (Min) :
- 24 AWG
- Mount :
- Free Hanging
- Voltage - Rated :
- 250V
- Operating Supply Voltage :
- 250V
- Factory Lead Time :
- 12 Weeks
- Pbfree Code :
- yes
- Depth :
- 25.91mm
- Pitch :
- 0.198 5.03mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- ECCN Code :
- EAR99
- Width :
- 11.15mm
- Filter Feature :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Min Operating Temperature :
- -67°C
- Connector Type :
- PLUG
- Max Operating Temperature :
- 221°C
- Series :
- Commercial .093 Pin and Socket
- Total Number of Contacts :
- 4
- Datasheets
- 770842-1
2 Rows Plug Bulk Natural Free Hanging (In-Line) Male or Female Crimp Commercial .093 Pin and Socket Nylon
770842-1 Overview
Packaging for this item is Plug.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Commercial .093 Pin and Socket Series.Free Hanging is used to mount the part.The operating supply voltage of this memory is 250V.
770842-1 Features
Commercial .093 Pin and Socket series
770842-1 Applications
There are a lot of TE Connectivity AMP Connectors
770842-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
