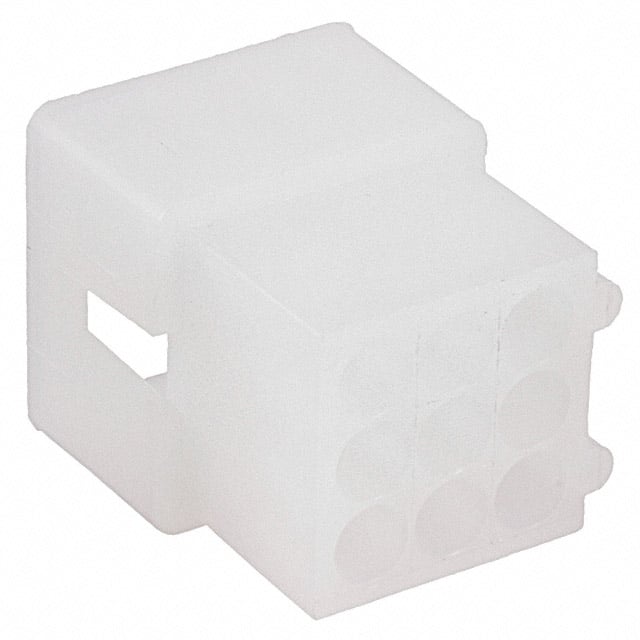

770428-1

Share

Or copy the link below:

Mfr.Part #
770428-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG HSG 9POS 3.68MM
Stock
50
In Stock :
50

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Housings
Fastening Type :
Detent Lock
Wire Gauge (Max) :
18 AWG
Max Voltage Rating (DC) :
250.25kV
Option :
GENERAL PURPOSE
Packaging :
Bulk
Length :
19.05mm
Contact Retention :
Without
DIN Conformance :
No
Max Voltage Rating (AC) :
250V
Height :
15.24mm
Filter Feature :
No
Max Operating Temperature :
221°C
Pitch :
0.145 3.68mm
Published :
1997
Contact Termination :
Crimp
Shell Material :
Polyamide
Approval Agency :
CSA
Mount :
Free Hanging
Sealable :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Signal Positions :
9
Current Rating :
7A
Pbfree Code :
yes
Total Number of Contacts :
9
Factory Lead Time :
12 Weeks
Empty Shell :
No
Housing Material :
Nylon
Contact Gender :
Male
ELV :
Compliant
Row Spacing :
0.145 (3.68mm)
Depth :
19.05mm
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Insulation Diameter :
2.79 mm
Wire/Cable Type :
Discrete
Width :
14.98854mm
Orientation :
Straight
Contact Type :
MALE OR FEMALE
Series :
Commercial .062 Pin and Socket
Color :
Natural
Min Operating Temperature :
-67°C
IEC Conformance :
No
Circuit Application :
Power
Wire Gauge (Min) :
30 AWG
MIL Conformance :
No
Number of Rows :
3
REACH SVHC :
Unknown
Note :
Contacts Not Included
Flammability Rating :
UL94 V-2
Connector Type :
PLUG
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Mixed Contacts :
No
Voltage - Rated :
250V
RoHS Status :
RoHS Compliant
Mounting Type :
Free Hanging (In-Line)
Operating Supply Voltage :
250V
Lead Free :
Lead Free
Datasheets
770428-1
Introducing Rectangular Connector Housings TE Connectivity AMP Connectors 770428-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 770428-1 pinout, 770428-1 datasheet PDF, 770428-1 amp .Beyond Rectangular Connector Housings TE Connectivity AMP Connectors 770428-1 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 770428-1


3 Rows Plug Bulk Natural Free Hanging (In-Line) Male or Female Crimp Commercial .062 Pin and Socket Nylon

770428-1 Overview


The packaging contains Plug.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Commercial .062 Pin and Socket belongs to the Commercial .062 Pin and Socket Series.There is a Free Hanging mount on the part.A 250V voltage is used to supply power to this memory.

770428-1 Features


Commercial .062 Pin and Socket series


770428-1 Applications


There are a lot of TE Connectivity AMP Connectors
770428-1 Rectangular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
