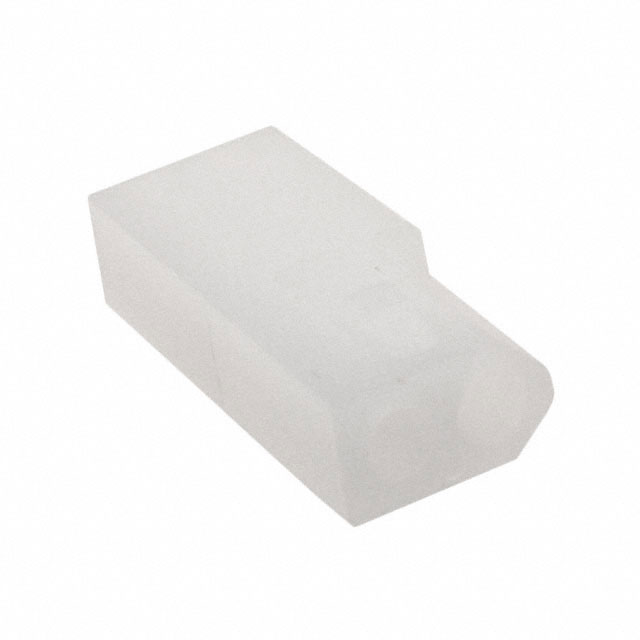

770419-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

ELV :

Compliant

Operating Supply Voltage :

250V

Depth :

20.57mm

Pitch :

0.145 3.68mm

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Flammability Rating :

UL94 V-2

Factory Lead Time :

6 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Type :

Discrete

ECCN Code :

EAR99

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Length :

20.828mm

Orientation :

Straight

Mixed Contacts :

No

Series :

Commercial .062 Pin and Socket

Max Voltage Rating (AC) :

250V

Empty Shell :

yes

Insulation Diameter :

2.79 mm

Housing Material :

Nylon

Pbfree Code :

yes

Sealable :

No

Option :

GENERAL PURPOSE

Contact Termination :

Crimp

DIN Conformance :

No

Max Operating Temperature :

221°C

Number of Signal Positions :

2

Voltage - Rated :

250V

Packaging :

Bulk

Filter Feature :

No

RoHS Status :

RoHS Compliant

Gender :

FEMALE

Row Spacing :

3.68 mm

Published :

1997

Contact Gender :

Male

Total Number of Contacts :

2

Fastening Type :

Locking Ramp

Note :

Contacts Not Included

Contact Retention :

Without

Min Operating Temperature :

-67°C

Height :

5.05mm

Number of Rows :

1

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Max Voltage Rating (DC) :

250V

Wire Gauge (Min) :

18 AWG

Width :

8.64mm

Wire/Cable Gauge :

30 AWG

Rated Current (Signal) :

7A

Approval Agency :

CSA

Circuit Application :

Power

Wire Gauge (Max) :

30 AWG

Mount :

Free Hanging, Panel

Color :

Natural

Lead Free :

Lead Free

Contact Type :

MALE OR FEMALE

IEC Conformance :

No

HTS Code :

8536.69.40.30
