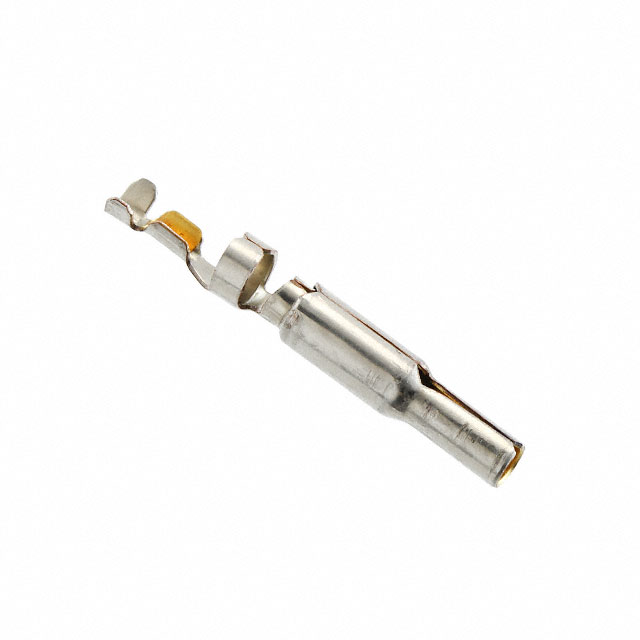

770416-6

Share

Or copy the link below:

Mfr.Part #
770416-6
Manufacturer
TE Connectivity AMP Connectors
Package / Case
0603
Datasheet
Download
Description
CONN SOCKET 26-30AWG CRIMP GOLD
Stock
18,650
In Stock :
18,650

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Contacts
Rated Current :
7A
MIL Conformance :
No
Pitch :
6.35mm
DIN Conformance :
No
Contact Current Rating :
7A
Approval Agency :
UL
Packaging :
Bulk
Contact Finish Thickness :
30.0μin 0.76μm
ELV :
Compliant
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
Circuit Application :
Power
Wire Gauge (Min) :
26 AWG
Gender :
FEMALE
Wire/Cable Type :
Discrete
Package / Case :
0603
Connector Support Type :
CONNECTOR ACCESSORY
Contact Termination :
Crimp
Wire/Cable Gauge :
26 AWG
Contact Finish :
Gold
Operating Supply Voltage :
600V
Pin or Socket :
Socket
Lead Free :
Lead Free
Pbfree Code :
yes
Plating Thickness :
760 nm
ECCN Code :
EAR99
Underplate Material :
Nickel
Series :
Universal MATE-N-LOK II
Factory Lead Time :
10 Weeks
IEC Conformance :
No
Depth :
3.43mm
Mount :
CABLE
Used With :
STANDARD UNIVERSAL MATE-N-LOK(PIN)
Cable Entry-Min :
0.032 inch
Orientation :
Straight
HTS Code :
8536.90.40.00
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Shielding :
Unshielded
Min Operating Temperature :
-55°C
Length :
25.27mm
Wire Gauge (Max) :
30 AWG
Published :
2005
Contact Material :
Bronze
Assembly Item Name :
Contact
Insulation Diameter :
1.4478 mm
Max Current Rating :
7A
Voltage - Rated :
600V
VDE Tested :
yes
Cable Entry-Max :
0.057 inch
Wire Gauge :
26-30 AWG
Max Operating Temperature :
120°C
RoHS Status :
RoHS Compliant
Datasheets
770416-6
Introducing Rectangular Connector Contacts TE Connectivity AMP Connectors 770416-6 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:0603, 770416-6 pinout, 770416-6 datasheet PDF, 770416-6 amp .Beyond Rectangular Connector Contacts TE Connectivity AMP Connectors 770416-6 ,we also offer 4281F2428-99, SWT25X-URTC-S01-UU-UU, SHF-001T-0.8BS, Our vast inventory has you covered. Contact us now for immediate solutions.
