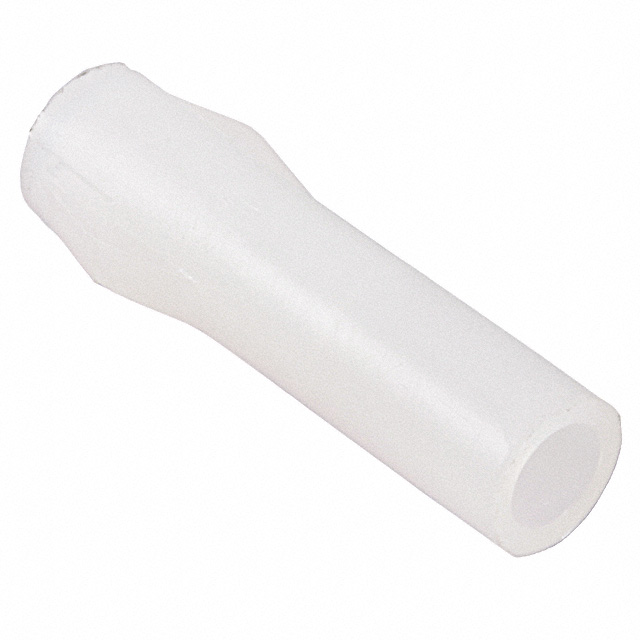

770277-1

Share

Or copy the link below:

Mfr.Part #
770277-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 1POS .062
Stock
119
In Stock :
119

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Housings
RoHS Status :
RoHS Compliant
Max Operating Temperature :
221°C
Contact Retention :
Without
Length :
19.94mm
Color :
Natural
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Factory Lead Time :
12 Weeks
Fastening Type :
Locking Ramp
Pbfree Code :
yes
Packaging :
Bulk
Wire Gauge (Max) :
18 AWG
Wire/Cable Type :
Discrete
Housing Material :
Nylon
Current Rating :
7A
Max Voltage Rating (AC) :
250V
Voltage - Rated :
250V
Pitch :
3.68mm
Operating Supply Voltage :
250V
Voltage - Rated DC :
250V
Contact Gender :
FEMALE
Orientation :
Straight
Connector Type :
Receptacle
Min Operating Temperature :
-67°C
Series :
Commercial .062 Pin and Socket
Insulation Diameter :
2.79 mm
Flammability Rating :
UL94 V-2
ECCN Code :
EAR99
Sealable :
No
Mounting Type :
Free Hanging (In-Line)
Approval Agency :
CSA
Contact Termination :
Crimp
Mount :
Free Hanging
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Note :
Contacts Not Included
HTS Code :
8536.69.40.30
ELV :
Compliant
Published :
1997
Depth :
5.16mm
Lead Free :
Lead Free
Wire Gauge (Min) :
30 AWG
REACH SVHC :
Unknown
Circuit Application :
Power
Max Voltage Rating (DC) :
250V
Contact Type :
MALE OR FEMALE
Number of Contacts :
1
Datasheets
770277-1
Introducing Rectangular Connector Housings TE Connectivity AMP Connectors 770277-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 770277-1 pinout, 770277-1 datasheet PDF, 770277-1 amp .Beyond Rectangular Connector Housings TE Connectivity AMP Connectors 770277-1 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 770277-1


Receptacle Bulk Natural Free Hanging (In-Line) Male or Female Crimp Commercial .062 Pin and Socket Nylon

770277-1 Overview


It comes in Receptacle packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the Commercial .062 Pin and Socket Series of products.The part is mounted by Free Hanging.This memory's operating supply voltage is 250V.

770277-1 Features


Commercial .062 Pin and Socket series


770277-1 Applications


There are a lot of TE Connectivity AMP Connectors
770277-1 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
