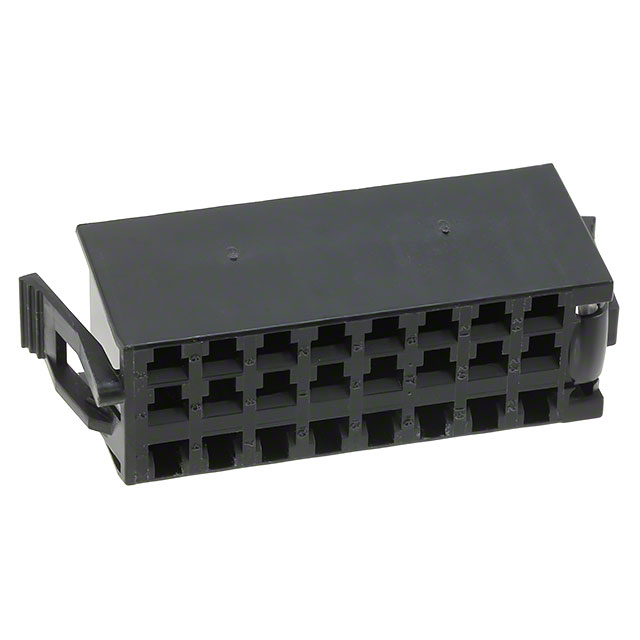

770197-1
Or copy the link below:
- Mfr.Part #
- 770197-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR HSG 24POS 5.59MM
- Stock
- 45,465
- In Stock ：
- 45,465
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Housing Material :
- Polyamide
- Mounting Type :
- Free Hanging (In-Line)
- Orientation :
- Straight
- Mixed Contacts :
- No
- Height :
- 20.7mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Fastening Type :
- Latch Lock/Eject Hooks
- Additional Feature :
- COMPATIBLE CONTACT: 770150
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Female Socket
- Connector Type :
- Header
- Published :
- 2009
- Empty Shell :
- yes
- Number of Rows :
- 3
- Factory Lead Time :
- 7 Weeks
- Filter Feature :
- No
- MIL Conformance :
- No
- DIN Conformance :
- No
- Approval Agency :
- CSA, UL
- Depth :
- 20.7mm
- Lead Free :
- Not Applicable
- Mount :
- Free Hanging, Panel
- Max Operating Temperature :
- 105°C
- RoHS Status :
- RoHS Compliant
- Contact Termination :
- Crimp
- Note :
- Contacts Not Included
- Number of Contacts :
- 24
- Min Operating Temperature :
- -55°C
- Pitch :
- 0.220 5.59mm
- Row Spacing :
- 0.200 (5.08mm)
- Length :
- 51.56mm
- Width :
- 19.63mm
- Color :
- Black
- Flammability Rating :
- UL94 V-2
- Pbfree Code :
- yes
- Contact Material :
- NOT SPECIFIED
- Packaging :
- Bulk
- IEC Conformance :
- No
- Datasheets
- 770197-1
770197-1 Documents
3 Rows Header Bulk Black Free Hanging (In-Line) Female Socket Crimp Polyamide
770197-1 Overview
A Header package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.Additionally, there are other features, such as COMPATIBLE CONTACT: 770150.Free Hanging, Panel mounts the part.
770197-1 Features
770197-1 Applications
There are a lot of TE Connectivity AMP Connectors
770197-1 Rectangular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
