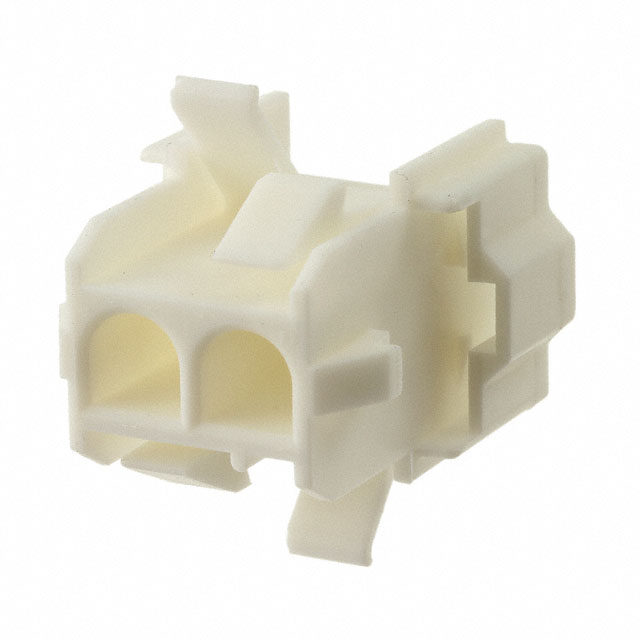

770045-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Total Number of Contacts :

2

Contact Termination :

Crimp

Color :

White

Operating Supply Voltage :

600V

Max Operating Temperature :

120°C

Pitch :

6.35mm

Packaging :

Bulk

Factory Lead Time :

9 Weeks

Max Voltage Rating (AC) :

600V

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Sealable :

No

Published :

1997

Connector Type :

Receptacle, Front Section

Empty Shell :

yes

Orientation :

Straight

Filter Feature :

No

Series :

Universal MATE-N-LOK II

Contact Gender :

MALE AND/OR FEMALE

Number of Rows :

1

IEC Conformance :

No

Contact Type :

MALE OR FEMALE

Mounting Type :

Panel Mount, Snap-In

Voltage - Rated :

600V

Note :

Contacts Not Included

Pbfree Code :

yes

VDE Tested :

yes

Contact Retention :

Without

Mixed Contacts :

No

Fastening Type :

Locking Ramp

Current Rating :

19A

RoHS Status :

RoHS Compliant

Width :

13.208mm

DIN Conformance :

No

Housing Material :

Nylon

Housing Color :

Natural, White

Mount :

Panel

Flammability Rating :

UL94 V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Approval Agency :

CSA

ELV :

Compliant

Min Operating Temperature :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

2

Length :

13.97mm

Height :

22.987mm

Panel Thickness :

2.29mm

Lead Free :

Lead Free

MIL Conformance :

No
