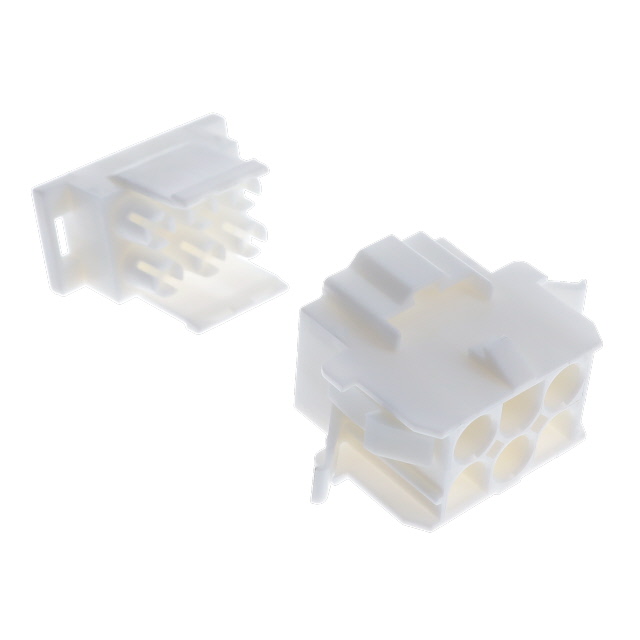

770027-1

Share

Or copy the link below:

Mfr.Part #
770027-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 6POS 2PC
Stock
5,424
In Stock :
5,424

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Housings
ECCN Code :
EAR99
MIL Conformance :
No
Mounting Type :
Panel Mount, Snap-In
Max Operating Temperature :
120°C
Length :
21.48mm
Mount :
Panel
Orientation :
Straight
Housing Material :
Nylon
Fastening Type :
Locking Ramp
Row Spacing :
0.250 (6.35mm)
Contact Retention :
Without
Filter Feature :
No
Current Rating :
31A
Width :
13.97mm
REACH SVHC :
Unknown
DIN Conformance :
No
UL Flammability Code :
94V-0
Published :
1997
Wire/Cable Gauge :
30 AWG
Wire Gauge (Min) :
10 AWG
Option :
GENERAL PURPOSE
Panel Thickness :
2.29mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Shell Material :
Polyamide
Max Voltage Rating (AC) :
600V
VDE Tested :
yes
Color :
White
IEC Conformance :
No
Sealable :
No
Approval Agency :
CSA
Min Operating Temperature :
-55°C
Pbfree Code :
yes
RoHS Status :
RoHS Compliant
Lead Free :
Lead Free
Note :
Contacts Not Included
Operating Supply Voltage :
600V
Mixed Contacts :
No
Packaging :
Bulk
Contact Material :
Copper
Flammability Rating :
UL94 V-0
Series :
Universal MATE-N-LOK II
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
Number of Contacts :
6
Connector Type :
Receptacle
Depth :
22.99mm
Pitch :
6.35mm
Wire Gauge (Max) :
30 AWG
Contact Gender :
FEMALE
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Voltage - Rated :
600V
Contact Type :
MALE OR FEMALE
Number of Rows :
3
Empty Shell :
No
Factory Lead Time :
4 Weeks
Contact Termination :
Crimp
Datasheets
770027-1
Introducing Rectangular Connector Housings TE Connectivity AMP Connectors 770027-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Snap-In, 770027-1 pinout, 770027-1 datasheet PDF, 770027-1 amp .Beyond Rectangular Connector Housings TE Connectivity AMP Connectors 770027-1 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 770027-1


3 Rows Receptacle Bulk White Panel Mount, Snap-In Male or Female Crimp Universal MATE-N-LOK II Nylon

770027-1 Overview


Packaging is Receptacle.Panel Mount, Snap-In is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Universal MATE-N-LOK II Series, it can be found in this category.In this case, Panel mounts the part.The memory's operating supply voltage is 600V.

770027-1 Features


Universal MATE-N-LOK II series


770027-1 Applications


There are a lot of TE Connectivity AMP Connectors
770027-1 Rectangular Connectors applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
