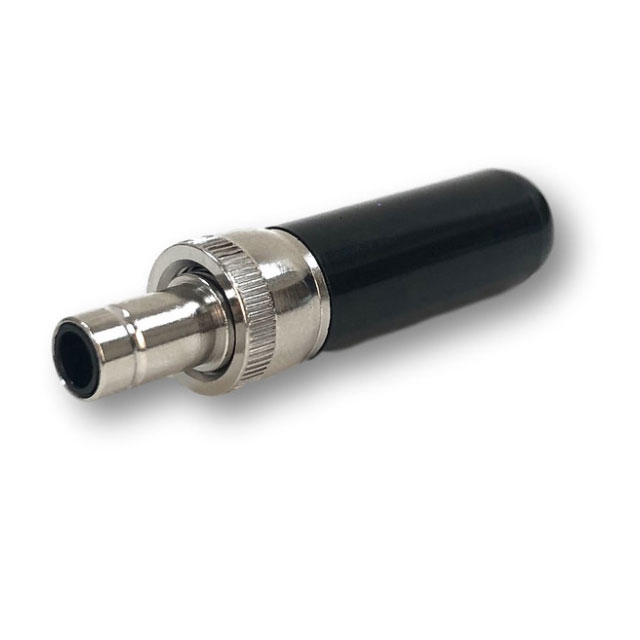

767KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Voltage Rating Max :

24VDC

Voltage - Rated :

24VDC

Termination Style :

Solder

Product Height (mm) :

Not Required(mm)

Mating Length/Depth :

0.476 (12.10mm)

Product Depth (mm) :

Not Required(mm)

Thread Size :

-

Actual Diameter :

0.083 (2.10mm ID), 0.217 (5.50mm OD)

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Package :

Bulk

Number of Contacts :

2(POS)

Product :

Plugs

Gender :

PL

ECCN :

EAR99

Current Rating (Max) :

5(A)

IP Rating :

-

Packaging :

Bulk

Mounting Type :

Free Hanging (In-Line)

Outside Contact Diameter :

5.5 mm

Product Diameter (mm) :

9.5(mm)

Contact Material :

COPPER ALLOY

Number of Terminals :

2

Body Color :

Silver, Black

Inside Contact Diameter :

2.1 mm

Operating Temperature :

-

Includes :

-

Ingress Protection :

-

Contact Material - Plating :

Tin

Mounting Style :

CABLE

Material Flammability Rating :

-

Pin Diameter :

-

Number of Ports :

1(Port)

Current Rating :

5 A

Termination :

Solder Eyelet(s)

Termination Method :

Solder

Current Rating (Amps) :

5 A

Mounting Feature :

-

Product Length (mm) :

45.7(mm)

Itar Registered :

Unavailable

RoHS :

Details

Body Material :

Brass

Type :

DC Power

Internal Switch(s) :

Does Not Contain Switch

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Insulation Color :

Black

Shielding :

Unshielded

Housing Material :

Thermoplastic (TP)

Features :

Cable Clamp, Thread Lock

Connector Type :

PLUG

Product Status :

Active

Body Orientation :

Straight

Voltage Rating :

24 VDC

Series :

-

Mounting Angle :

Straight

Contact Plating :

Nickel
