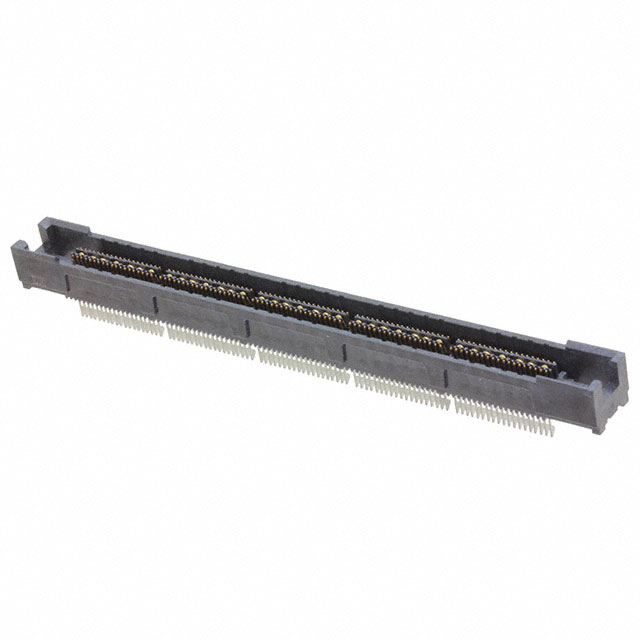

767143-5
Or copy the link below:
- Mfr.Part #
- 767143-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP 190P EDGE PALLAD-NICKEL
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Color :
- Black
- Insulation Resistance :
- 2MOhm
- Packaging :
- Tube
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Columns :
- 95
- Housing Material :
- Polymer
- Contact Resistance :
- 10MOhm
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Differential Signaling :
- yes
- Contact Finish Thickness - Mating :
- 762 nm
- Pitch :
- 0.025 0.64mm
- Termination :
- SMD/SMT
- PCB Mount Retention :
- Without
- DIN Conformance :
- No
- Underplate Material :
- Nickel
- Max Voltage Rating (AC) :
- 30V
- Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Number of Rows :
- 2
- Gender :
- FEMALE
- Operating Supply Voltage :
- 30V
- Circuit Application :
- Signal
- Total Number of Contacts :
- 190
- Width :
- 6.9mm
- Mixed Contacts :
- No
- Height :
- 5.9944mm
- Max Operating Temperature :
- 125°C
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Published :
- 2007
- ELV :
- Compliant
- Min Operating Temperature :
- -55°C
- Sealable :
- No
- Series :
- MICTOR
- MIL Conformance :
- No
- Number of Power Positions :
- 5
- Data Rate :
- 10 Gbps
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Number of Positions :
- 190
- Length :
- 76.2mm
- Mating Alignment :
- With
- Contact Current Rating :
- 11.5A
- Factory Lead Time :
- 13 Weeks
- Pbfree Code :
- No
- Connector Type :
- Receptacle, Center Strip Contacts
- Feature :
- Board Guide, Ground Bus (Plane)
- Contact Finish :
- Palladium-Nickel
- Mounting Type :
- Board Edge, Straddle Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Datasheets
- 767143-5
Receptacle, Center Strip Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 190 Positions MICTOR Palladium-Nickel SMD/SMT
767143-5 Overview
Packaging is in the form of Receptacle, Center Strip Contacts.An orange Tube case is used to package the product.This device has a Board Edge, Straddle Mount mounting type.Specifically, it is one of the products in the MICTOR Series.In operation, Board Guide, Ground Bus (Plane) can be maintained as long as Board Guide, Ground Bus (Plane) is unchanged.If the temperature is below 125°C, it's best to use it.-55°C is the minimum temperature for this device.This device can be used with a 30V supply, as it is designed for that operation.
767143-5 Features
MICTOR series
Package / Case: Tube
Mounting Type:Board Edge, Straddle Mount
Max Operating temperature at -55°C
767143-5 Applications
There are a lot of TE Connectivity AMP Connectors
767143-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
