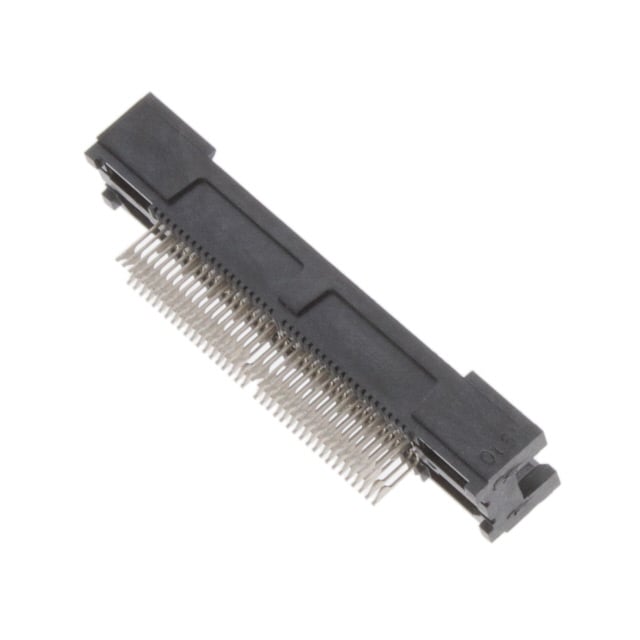

767143-2
Or copy the link below:
- Mfr.Part #
- 767143-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 76P EDGE PALLAD-NICKEL
- Stock
- 14
- In Stock ：
- 14
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Gender :
- Receptacle
- Termination :
- SMD/SMT
- Contact Finish :
- Palladium-Nickel
- Color :
- Black
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Underplate Material :
- Nickel
- Number of Positions :
- 76
- Number of Columns :
- 38
- Packaging :
- Tube
- Min Operating Temperature :
- -55°C
- Mount :
- Edge, Straddle Mount
- Contact Finish Thickness - Mating :
- 762 nm
- Circuit Application :
- Signal
- RoHS Status :
- Non-RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Data Rate :
- 10 Gbps
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold, Lead, Nickel, Tin
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Mating Alignment :
- With
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Mount Retention :
- Without
- Series :
- MICTOR
- Factory Lead Time :
- 13 Weeks
- Length :
- 38.1mm
- Number of Rows :
- 2
- Contact Current Rating :
- 11.5A
- Insulation Resistance :
- 2MOhm
- Connector Type :
- Receptacle, Center Strip Contacts
- Differential Signaling :
- yes
- Height :
- 5.9944mm
- Sealable :
- No
- Housing Material :
- Polymer
- ELV :
- Compliant
- Max Operating Temperature :
- 125°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pitch :
- 0.025 0.64mm
- Feature :
- Board Guide, Ground Bus (Plane)
- Mounting Type :
- Board Edge, Straddle Mount
- Published :
- 2007
- Operating Supply Voltage :
- 30V
- Total Number of Contacts :
- 76
- Width :
- 6.9mm
- Filter Feature :
- No
- Pbfree Code :
- No
- MIL Conformance :
- No
- Datasheets
- 767143-2
Receptacle, Center Strip Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 76 Positions MICTOR Palladium-Nickel SMD/SMT
767143-2 Overview
The product is packaged in Receptacle, Center Strip Contacts.It has been determined that a Tube case is necessary to package the product.This device is mounted in the Board Edge, Straddle Mount position.There is a product in the MICTOR Series.This can be ensured when the system is in operation by maintaining Board Guide, Ground Bus (Plane).For mounting this component, a Edge, Straddle Mount socket is required.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.Since this device is suitable for operation with a 30V supply, it may be used with this supply as well.
767143-2 Features
MICTOR series
Package / Case: Tube
Mounting Type:Board Edge, Straddle Mount
Max Operating temperature at -55°C
767143-2 Applications
There are a lot of TE Connectivity AMP Connectors
767143-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
