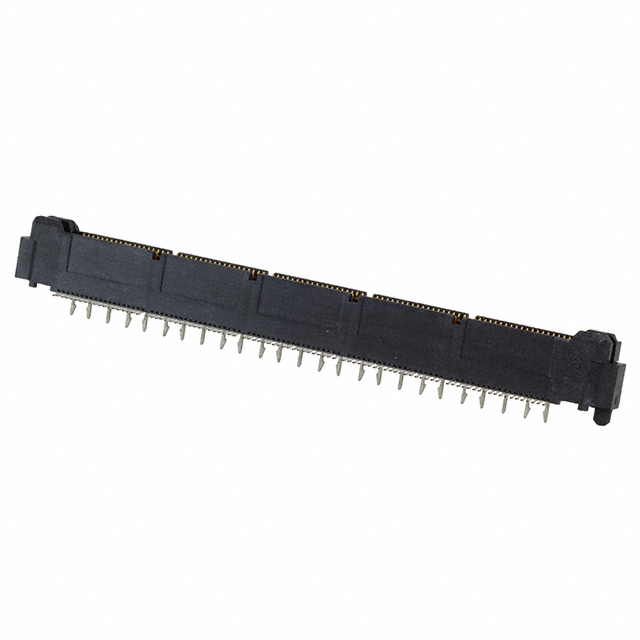

767140-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

IEC Conformance :

No

Orientation :

Straight

Number Of PCB Rows :

2

Lead Free :

Contains Lead

Contact Resistance :

10MOhm

Depth :

5.28mm

Max Operating Temperature :

125°C

Withdrawl Force-Min :

.139 N

Plating Thickness :

5μin

Connector Type :

PLUG

Pitch :

640μm

Reference Standard :

UL, CSA

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Mount :

Surface Mount

Flammability Rating :

UL94 V-0

ELV :

Compliant

RoHS Status :

Non-RoHS Compliant

Min Operating Temperature :

-55°C

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

PCB Contact Row Spacing :

7.0866 mm

Option :

GENERAL PURPOSE

Color :

Black

Max Voltage Rating (AC) :

30V

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Contacts :

190

Durability :

500 Cycles

Housing Material :

Polymer

Contact Gender :

Male

ECCN Code :

EAR99

Contact Style :

BELLOWED TYPE

Additional Feature :

MICTOR

Number of Conductors :

ONE

Number of Rows :

2

Pbfree Code :

No

PCB Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

18mm

Insulation Resistance :

10000000000Ohm

Rated Current (Signal) :

1A

HTS Code :

8536.69.40.40

Contact Plating :

Gold, Nickel

Termination :

Solder

Length :

76.2mm

Dielectric Withstanding Voltage :

500VAC V

Radiation Hardening :

No

JESD-609 Code :

e0

Filter Feature :

No
