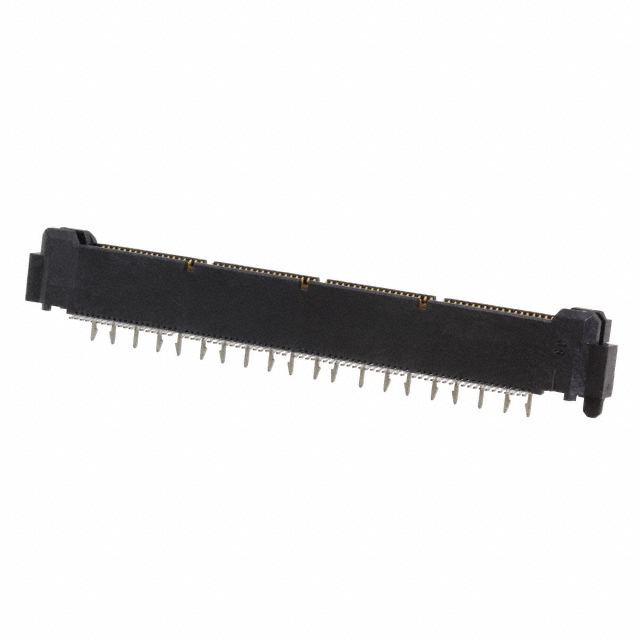

767140-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Conductors :

ONE

Pitch :

640μm

Number of Rows :

2

Plating Thickness :

5μin

PCB Contact Pattern :

RECTANGULAR

Length :

63.5mm

MIL Conformance :

No

Number of Contacts :

152

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Connector Type :

PLUG

Max Voltage Rating (AC) :

30V

PCB Contact Row Spacing :

7.0866 mm

Pbfree Code :

No

Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Rated Current (Signal) :

1A

Durability :

500 Cycles

Filter Feature :

No

Radiation Hardening :

No

Contact Gender :

Male

Termination :

Solder

Additional Feature :

MICTOR

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

ELV :

Compliant

Min Operating Temperature :

-55°C

IEC Conformance :

No

Stack Height (Mating) :

18mm

Mount :

Surface Mount

Flammability Rating :

UL94 V-0

Housing Material :

Polymer

Contact Plating :

Gold, Nickel

Option :

GENERAL PURPOSE

Depth :

5.28mm

Contact Resistance :

10MOhm

Contact Style :

BELLOWED TYPE

Max Operating Temperature :

125°C

Color :

Black

Withdrawl Force-Min :

.139 N

HTS Code :

8536.69.40.40

Orientation :

Straight

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

500VAC V

Mixed Contacts :

No

Number Of PCB Rows :

2

Reference Standard :

UL, CSA

Insulation Resistance :

10000000000Ohm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
