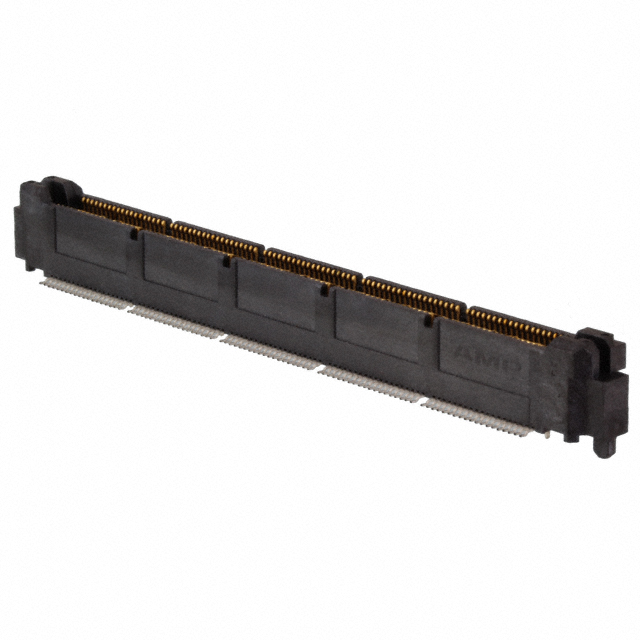

767139-5
Or copy the link below:
- Mfr.Part #
- 767139-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 190POS SMD GOLD
- Stock
- 49,322
- In Stock ：
- 49,322
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Reference Standard :
- UL, CSA
- Number of Conductors :
- ONE
- Withdrawl Force-Min :
- .139 N
- Termination :
- Solder
- Contact Style :
- BELLOWED TYPE
- RoHS Status :
- Non-RoHS Compliant
- Min Operating Temperature :
- -55°C
- Number of Rows :
- 2
- Orientation :
- Straight
- Number of Contacts :
- 190
- Option :
- GENERAL PURPOSE
- Reliability :
- COMMERCIAL
- Durability :
- 500 Cycles
- Stack Height (Mating) :
- 18mm
- Depth :
- 5.2mm
- Mixed Contacts :
- No
- Plating Thickness :
- 30μin
- PCB Contact Row Spacing :
- 7.0866 mm
- Contact Resistance :
- 10MOhm
- IEC Conformance :
- No
- Additional Feature :
- MICTOR
- PCB Contact Pattern :
- RECTANGULAR
- ELV :
- Compliant
- Max Voltage Rating (AC) :
- 30V
- Color :
- Black
- Pitch :
- 640μm
- Insulation Resistance :
- 10000000000Ohm
- Max Operating Temperature :
- 125°C
- Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- Connector Type :
- PLUG
- Rated Current (Signal) :
- 1A
- Lead Free :
- Contains Lead
- Length :
- 76.2mm
- Contact Gender :
- Male
- DIN Conformance :
- No
- Contact Plating :
- Gold
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- JESD-609 Code :
- e0
- Dielectric Withstanding Voltage :
- 500VAC V
- Polarization Key :
- POLARIZED HOUSING
- MIL Conformance :
- No
- Number Of PCB Rows :
- 2
- Mount :
- Surface Mount
- Housing Material :
- Polymer
- Radiation Hardening :
- No
- Datasheets
- 767139-5
Plug 2 Rows 640μm Solder
767139-5 Overview
You get it in Plug packaging.Use a Surface Mount socket to mount this.Using it at a temperature below 125°C is ideal.A minimum temperature of -55°C is needed for this device.Besides that, there's also MICTOR, to name a few.
767139-5 Features
Max Operating temperature at -55°C
Additional Feature: MICTOR
767139-5 Applications
There are a lot of TE Connectivity / AMP
767139-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
