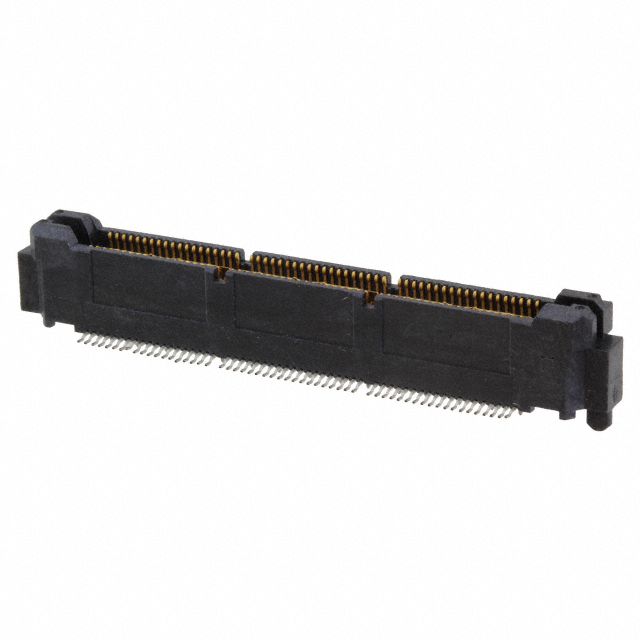

767139-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Mounting Style :

Straight

Terminal Pitch :

0.64mm

Mating Contact Pitch :

0.025 inch

Contact Resistance :

10MOhm

Insulation Resistance :

10000000000Ohm

Reliability :

COMMERCIAL

MIL Conformance :

No

Reach Compliance Code :

not_compliant

Dielectric Withstanding Voltage :

500VAC V

Insulator Color :

Black

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

1A

Operating Temperature (Max) :

125°C

IEC Conformance :

No

Mixed Contacts :

No

Contact Style :

BELLOWED TYPE

Connector Type :

BOARD STACKING CONNECTOR

HTS Code :

8536.69.40.40

Contact Gender :

Male

Contact Material :

NOT SPECIFIED

Additional Feature :

MICTOR

Filter Feature :

No

Body Length or Diameter :

2 inch

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Insertion Force-Max :

1.112 N

Number of Rows :

2

Total Number of Contacts :

114

Plating Thickness :

30u inch

ECCN Code :

EAR99

Contact Finish - Mating :

NOT SPECIFIED

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature (Min) :

-55°C

Insulation Material :

Liquid Crystal Polymer (LCP)

Termination Type :

Surface Mount

Reference Standard :

UL, CSA

RoHS Status :

Non-RoHS Compliant

Number Of PCB Rows :

2

Body Depth :

0.343 inch

Withdrawl Force-Min :

.139 N

Mounting Type :

BOARD

Body Breadth :

0.208 inch

JESD-609 Code :

e0

Number of Conductors :

ONE

Body/Shell Style :

PLUG

PCB Contact Row Spacing :

7.0866 mm

Durability :

500 Cycles
