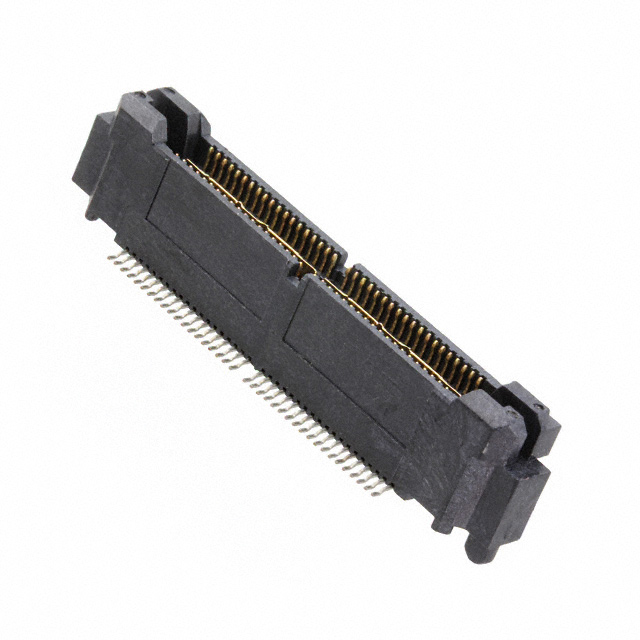

767139-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

DIN Conformance :

No

Mixed Contacts :

No

Connector Type :

Plug, Outer Shroud Contacts

Height Above Board :

0.343 8.70mm

Mounting Type :

Surface Mount

Feature :

Board Guide, Ground Bus (Plane)

Contact Gender :

Male

ELV :

Compliant

Reliability :

COMMERCIAL

Withdrawl Force-Min :

.139 N

RoHS Status :

Non-RoHS Compliant

Stack Height (Mating) :

9mm 18mm

Rated Current (Signal) :

1A

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Pitch :

0.025 0.64mm

Reference Standard :

UL, CSA

Number of Positions :

76

Min Operating Temperature :

-55°C

Contact Resistance :

10MOhm

Factory Lead Time :

10 Weeks

Option :

GENERAL PURPOSE

Radiation Hardening :

No

MIL Conformance :

No

Max Operating Temperature :

125°C

Contact Finish Thickness :

30.0μin 0.76μm

Contact Style :

BELLOWED TYPE

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Max Voltage Rating (AC) :

30V

Filter Feature :

No

Termination :

Solder

Length :

38.1mm

Insulation Resistance :

10000000000Ohm

Durability :

500 Cycles

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e0

Depth :

5.2mm

Series :

MICTOR

Contact Finish :

Gold

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Plating Thickness :

30μin

Number of Conductors :

ONE

Dielectric Withstanding Voltage :

500VAC V

Published :

2007

Total Number of Contacts :

76

Housing Material :

Polymer

PCB Contact Row Spacing :

7.0866 mm

Mount :

Surface Mount, Through Hole

Color :

Black
