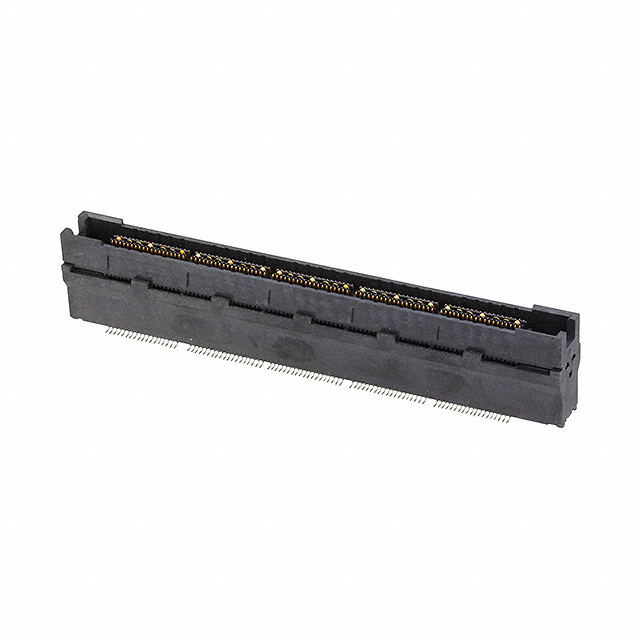

767130-5
Or copy the link below:
- Mfr.Part #
- 767130-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 190POS SMD GOLD
- Stock
- 38,228
- In Stock ：
- 38,228
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Mating Alignment :
- Without
- Insulation Resistance :
- 2MOhm
- Data Rate :
- 10 Gbps
- Mount :
- Surface Mount
- Option :
- GENERAL PURPOSE
- Pitch :
- 0.025 0.64mm
- Height Above Board :
- 0.587 14.91mm
- Contact Finish :
- Gold
- Number of Power Positions :
- 5
- Underplate Material :
- Nickel
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Length :
- 76.2mm
- Reference Standard :
- UL, CSA
- Stack Height :
- 18mm
- ELV :
- Compliant
- Feature :
- Board Guide, Ground Bus (Plane)
- Mixed Contacts :
- No
- Sealable :
- No
- Number of Positions :
- 190
- Additional Feature :
- GULL WING LEADS
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- DIN Conformance :
- No
- Total Number of Contacts :
- 190
- Plating Thickness :
- 30μin
- Contact Finish Thickness - Mating :
- 760 nm
- Width :
- 8mm
- Housing Material :
- Polymer
- Orientation :
- Vertical
- PCB Thickness :
- 1.57mm
- Number Of PCB Rows :
- 2
- Differential Signaling :
- yes
- Factory Lead Time :
- 25 Weeks
- PCB Mount Alignment :
- With
- Operating Supply Voltage :
- 30V
- Stack Height (Mating) :
- 15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm
- Published :
- 2007
- Number of Conductors :
- ONE
- Row Spacing :
- 5.79 mm
- Lead Free :
- Contains Lead
- Withdrawl Force-Min :
- .139 N
- Number of Columns :
- 95
- Circuit Application :
- Signal
- Min Operating Temperature :
- -55°C
- Height :
- 15.0114mm
- Mounting Type :
- Surface Mount
- Connector Type :
- Receptacle, Center Strip Contacts
- Packaging :
- Tube
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- FEMALE
- Rated Current (Signal) :
- 1A
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- No
- Polarization Key :
- ENDS
- Contact Pattern :
- RECTANGULAR
- IEC Conformance :
- No
- Reliability :
- COMMERCIAL
- Number of Rows :
- 2
- Contact Current Rating :
- 11.5A
- PCB Contact Pattern :
- RECTANGULAR
- MIL Conformance :
- No
- Contact Resistance :
- 10MOhm
- Termination :
- SMD/SMT
- RoHS Status :
- Non-RoHS Compliant
- Filter Feature :
- No
- Max Operating Temperature :
- 125°C
- Series :
- MICTOR
- Datasheets
- 767130-5
Receptacle, Center Strip Contacts Tube 2 Rows 0.025 0.64mm Surface Mount 190 Positions MICTOR Gold SMD/SMT
767130-5 Overview
Packaging is Receptacle, Center Strip Contacts.Packaging for the product is carried out via a Tube case.Surface Mount is the mounting type.As a product of the MICTOR Series, it can be found in this category.By operating the device, Board Guide, Ground Bus (Plane) is maintained at all times.When mounting this part, a Surface Mount socket must be used.Temperatures below 125°C are best for using it.There's a minimum temperature of -55°C for this device.There are also other features such as GULL WING LEADS, to name only a few.In view of the fact that this device can operate with a 30V supply, it is appropriate for use with that device.
767130-5 Features
MICTOR series
Package / Case: Tube
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: GULL WING LEADS
767130-5 Applications
There are a lot of TE Connectivity AMP Connectors
767130-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
