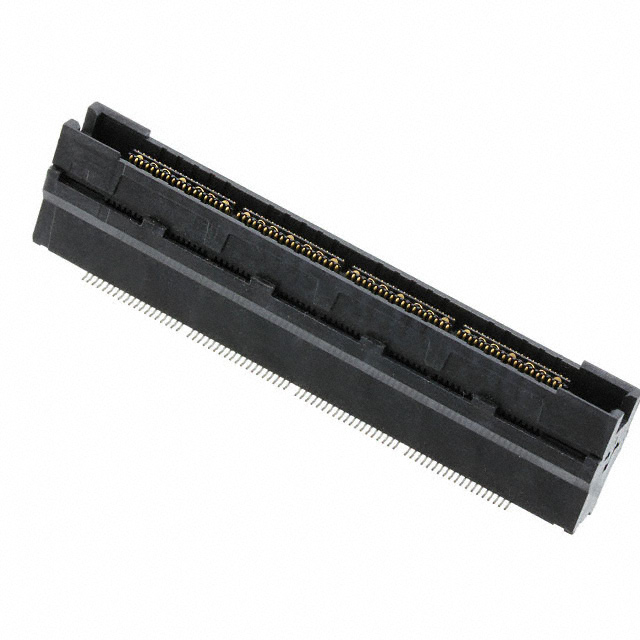

767130-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mounting Type :

Surface Mount

Circuit Application :

Signal

Row Spacing :

5.79 mm

Option :

GENERAL PURPOSE

Termination :

SMD/SMT

Differential Signaling :

yes

Feature :

Board Guide, Ground Bus (Plane)

Body Depth :

0.587 inch

Contact Resistance :

10MOhm

Connector Type :

Receptacle, Center Strip Contacts

Height :

15.0114mm

PCB Contact Pattern :

RECTANGULAR

Height Above Board :

0.587 14.91mm

Body Breadth :

0.315 inch

Reference Standard :

UL, CSA

RoHS Status :

Non-RoHS Compliant

Sealable :

No

Mixed Contacts :

No

Contact Finish Thickness - Mating :

760 nm

Underplate Material :

Nickel

MIL Conformance :

No

Max Operating Temperature :

125°C

PCB Mount Alignment :

With

Stack Height :

18mm

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Width :

8mm

Withdrawl Force-Min :

.139 N

Contact Finish :

Gold

Total Number of Contacts :

152

PCB Thickness :

1.57mm

Additional Feature :

GULL WING LEADS

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Published :

2007

Number of Rows :

2

Number of Positions :

152

Packaging :

Tube

Contact Finish Thickness :

30.0μin 0.76μm

Data Rate :

10 Gbps

Voltage - Rated DC :

30V

Polarization Key :

ENDS

Number of Columns :

76

Series :

MICTOR

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Plating Thickness :

30μin

Orientation :

Vertical

Housing Material :

Polymer

Filter Feature :

No

Pbfree Code :

No

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Contact Current Rating :

11.5A

Rated Current (Signal) :

1A

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Insulation Resistance :

2MOhm

Number of Power Positions :

4

Factory Lead Time :

25 Weeks

Min Operating Temperature :

-55°C

Dielectric Withstanding Voltage :

500VAC V

Gender :

FEMALE

Mount :

Surface Mount

ELV :

Compliant

Pitch :

0.025 0.64mm

Operating Supply Voltage :

30V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

63.45mm

Color :

Black

Number Of PCB Rows :

2

Mating Alignment :

Without
