767130-3
Or copy the link below:
- Mfr.Part #
- 767130-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 114POS SMD GOLD
- Stock
- 17,713
- In Stock ：
- 17,713
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Number of Rows :
- 2
- ELV :
- Compliant
- Mount :
- Surface Mount
- Connector Type :
- Receptacle, Center Strip Contacts
- Min Operating Temperature :
- -55°C
- Contact Current Rating :
- 11.5A
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Length :
- 50.79746mm
- Height :
- 15.0114mm
- Mounting Type :
- Surface Mount
- Operating Supply Voltage :
- 30V
- Width :
- 8mm
- Reliability :
- COMMERCIAL
- Series :
- MICTOR
- Row Spacing :
- 5.79 mm
- Published :
- 2007
- Number of Conductors :
- ONE
- MIL Conformance :
- No
- Rated Current (Signal) :
- 1A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stack Height (Mating) :
- 15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Color :
- Black
- PCB Contact Pattern :
- RECTANGULAR
- Housing Material :
- Polymer
- Mating Alignment :
- Without
- Stack Height :
- 18mm
- Contact Resistance :
- 10MOhm
- Pbfree Code :
- No
- Data Rate :
- 10 Gbps
- Total Number of Contacts :
- 114
- PCB Mount Alignment :
- With
- Packaging :
- Tube
- Contact Pattern :
- RECTANGULAR
- Circuit Application :
- Signal
- Body Depth :
- 0.587 inch
- Additional Feature :
- GULL WING LEADS
- Differential Signaling :
- yes
- Insulation Resistance :
- 2MOhm
- Factory Lead Time :
- 25 Weeks
- Feature :
- Board Guide, Ground Bus (Plane)
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Underplate Material :
- Nickel
- Termination :
- SMD/SMT
- Reference Standard :
- UL, CSA
- Gender :
- Receptacle
- Dielectric Withstanding Voltage :
- 500VAC V
- Pitch :
- 0.025 0.64mm
- Filter Feature :
- No
- Max Operating Temperature :
- 125°C
- Height Above Board :
- 0.587 14.91mm
- Number of Power Positions :
- 3
- IEC Conformance :
- No
- Contact Finish Thickness - Mating :
- 760 nm
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number Of PCB Rows :
- 2
- Number of Positions :
- 114
- PCB Thickness :
- 1.57mm
- Orientation :
- Vertical
- Polarization Key :
- ENDS
- Flammability Rating :
- UL94 V-0
- Number of Columns :
- 57
- Datasheets

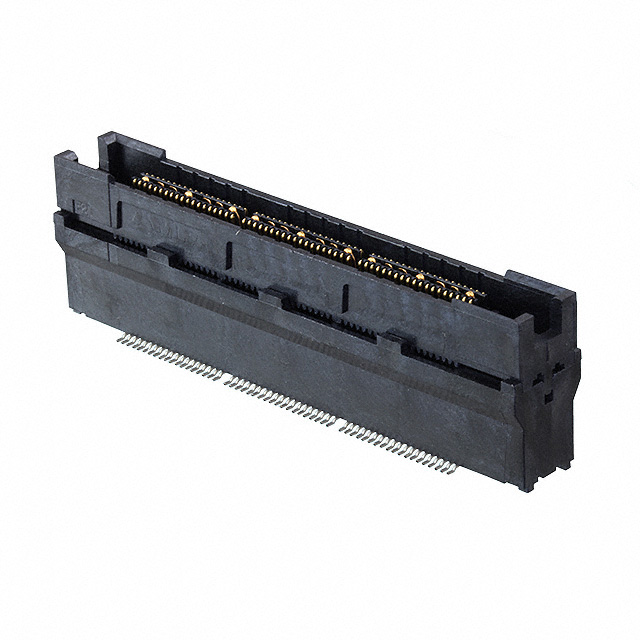

- 767130-3
Receptacle, Center Strip Contacts Tube 2 Rows 0.025 0.64mm Surface Mount 114 Positions MICTOR Gold SMD/SMT
767130-3 Overview
Packaging for this item is Receptacle, Center Strip Contacts.It is necessary to use a Tube case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the MICTOR Series.In operation, it is possible to ensure that Board Guide, Ground Bus (Plane) is maintained.This part requires a Surface Mount socket for mounting.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.Moreover, there are a number of other features, including GULL WING LEADS, to name just a few.Since this device is suitable for operation with a 30V supply, it can be used with that supply.
767130-3 Features
MICTOR series
Package / Case: Tube
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: GULL WING LEADS
767130-3 Applications
There are a lot of TE Connectivity AMP Connectors
767130-3 Rectangular Connectors applications.
