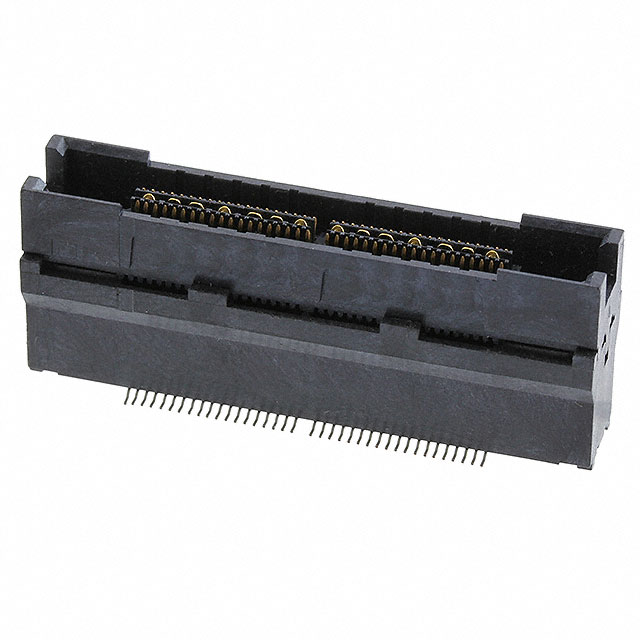

767130-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Operating Supply Voltage :

30V

Length :

38.1mm

Filter Feature :

No

Feature :

Board Guide, Ground Bus (Plane)

Reliability :

COMMERCIAL

Contact Finish Thickness :

30.0μin 0.76μm

Published :

2007

Number Of PCB Rows :

2

Pitch :

0.025 0.64mm

Number of Rows :

2

Insulation Resistance :

2MOhm

DIN Conformance :

No

Width :

8mm

Mounting Type :

Surface Mount

Contact Finish :

Gold

Reference Standard :

UL, CSA

Mating Alignment :

Without

Stack Height :

18mm

Row Spacing :

5.79 mm

Total Number of Contacts :

76

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

ECCN Code :

EAR99

PCB Mount Alignment :

With

Housing Material :

Polymer

Differential Signaling :

yes

Contact Current Rating :

11.5A

Contact Resistance :

10MOhm

Height :

15.0114mm

ELV :

Compliant

Number of Positions :

76

Additional Feature :

GULL WING LEADS

Dielectric Withstanding Voltage :

500VAC V

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

ENDS

Circuit Application :

Signal

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Lead Free :

Contains Lead

HTS Code :

8536.69.40.40

Body Breadth :

0.315 inch

Max Voltage Rating (AC) :

30V

Underplate Material :

Nickel

Contact Plating :

Gold, Lead, Nickel, Tin

Depth :

8mm

IEC Conformance :

No

Number of Columns :

38

Min Operating Temperature :

-55°C

Data Rate :

10 Gbps

Factory Lead Time :

25 Weeks

Pbfree Code :

No

Rated Current (Signal) :

1A

MIL Conformance :

No

Option :

GENERAL PURPOSE

Contact Finish Thickness - Mating :

760 nm

Series :

MICTOR

Plating Thickness :

30μin

Withdrawl Force-Min :

.139 N

Termination :

SMD/SMT

RoHS Status :

Non-RoHS Compliant

Packaging :

Tube

Contact Pattern :

RECTANGULAR

Orientation :

Vertical

Connector Type :

Receptacle, Center Strip Contacts

Height Above Board :

0.587 14.91mm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Contact Gender :

FEMALE

Flammability Rating :

UL94 V-0

Color :

Black

Sealable :

No

Max Operating Temperature :

125°C

PCB Thickness :

1.57mm

Mixed Contacts :

No

Number of Conductors :

ONE
