Mfr.Part #: 766K

Manufacturer: Switchcraft / Conxall

Package / Case

Datasheet: Download

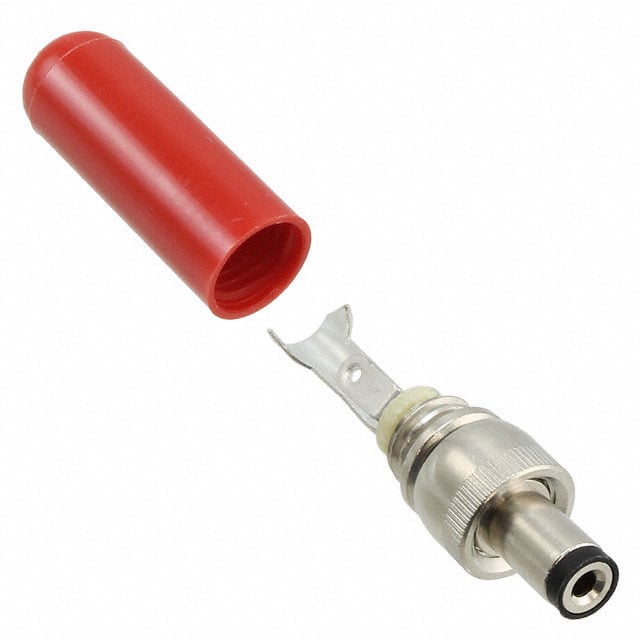

Description: CONN PWR PLUG 2.5X5.5MM SOLDER

Stock: 36

In Stock ：: 36

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: Switchcraft / Conxall
Product Category :: Power Connectors

Insulation Color :: Red

RoHS Status :: ROHS3 Compliant

Max Current Rating :: 5A

Orientation :: Straight

Feature :: Thread Lock

Gender :: FEMALE

Mount :: Cable, Free Hanging

Mounting Type :: Free Hanging (In-Line)

Option :: GENERAL PURPOSE

Internal Switch(s) :: Does Not Contain Switch

Termination :: Solder Eyelet(s)

Body Material :: Brass

Rated Current (Power) :: 5A

Current Rating :: 5A

Lead Free :: Lead Free

Moisture Sensitivity Level (MSL) :: Not Applicable

IEC Conformance :: No

Number of Positions/Contacts :: 2 Conductors, 2 Contacts

Body Color :: Silver, Red

Factory Lead Time :: 12 Weeks

Actual Diameter :: 0.083 (2.10mm ID), 0.217 (5.50mm OD)

Color :: Black

Contact Gender :: Male

Contact Material - Plating :: Tin

Number of Terminations :: 2

Packaging :: Bulk

Contact Finish - Mating :: Nickel

MIL Conformance :: No

DIN Conformance :: No

Shielding :: Unshielded

Connector Type :: PLUG

Industry Recognized Mating Diameter :: 2.50mm ID (0.098), 5.50mm OD (0.217)

Includes :: 2 pcs - 1 Connector, 1 Handle

Number of Ports :: 1

Housing Material :: Thermoplastic

Length :: 45.72mm

Datasheets: 766K
